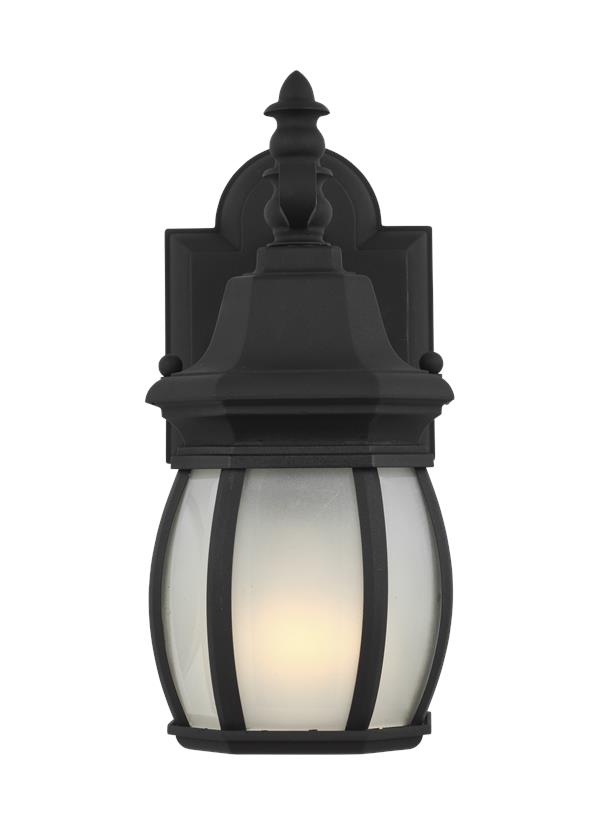

89104-12: Extra Small One Light Outdoor Wall Lantern

	Collection: Wynfield
	Black Cast Aluminum Single Light Outdoor Wall Lantern with Frosted Glass
	One Light Wall Lantern in Black Finish
	Featured in the decorative Wynfield collection
	1 A19 Medium 75 watt light bulb
	frosted glass panels and frosted glass panels
	Easily converts to LED with optional replacement lamps
	Meets Title 24 energy efficiency standards
	UPC #:785652078491
	Finish: Black (12)

Dimensions:


Width:	5''
Height:	11 1/4''

Weight:

2.1 lbs.

Extends:

8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Die Cast Aluminum - Black

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

English (88203 89104)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Frosted

G501185-97

1 1/4

4 1/8

Panel

Glass

Frosted

G501186-97

4 1/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	7 1/2	5	7/8		4 5/16

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	88203-12	1	785652078491	11	7.5	13.5	0.645	2.1	0	Yes
Master Pack	89104-12	0	10785652078498
NJ Pallet		108		48	40	74	82.222	226.8		No
NV Pallet		108		48	40	74	82.222	226.8		No
