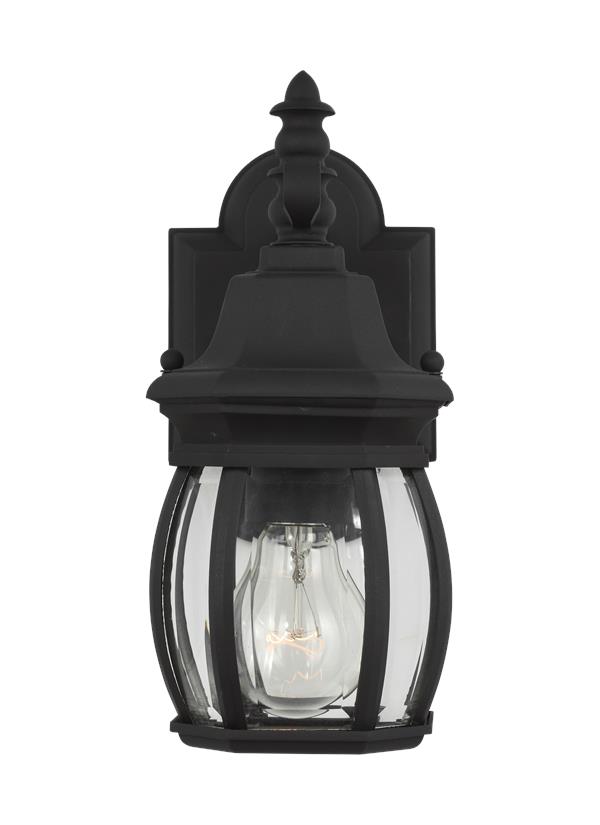

88203-12: Extra Small One Light Outdoor Wall Lantern


Collection:  Wynfield

Black Cast Aluminum Single Light Outdoor Wall Lantern with Clear Beveled Glass

One Light Wall Lantern in Black Finish

Featured in the decorative Wynfield collection

1 A19 Medium 75 watt light bulb

clear beveled glass panels and clear beveled glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652078484

Finish:   Black (12)
Dimensions:

Width: 5''
Height: 11 1/4''
Weight: 2.1 lbs.
Extends: 8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (88203 89104)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Beveled 4 G501185-631   1 1/4 4 1/8
Panel Glass Clear Beveled 4 G501186-631   2 4 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7 1/2  5  7/8    4 5/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88203-12 1  785652078484  13.5 7.5 11 0.645 2.9 0 Yes
Master Pack 88203-12 0  10785652078481
NJ Pallet   90    48 40 75 83.333 261 No
NV Pallet   90    48 40 75 83.333 261 No
