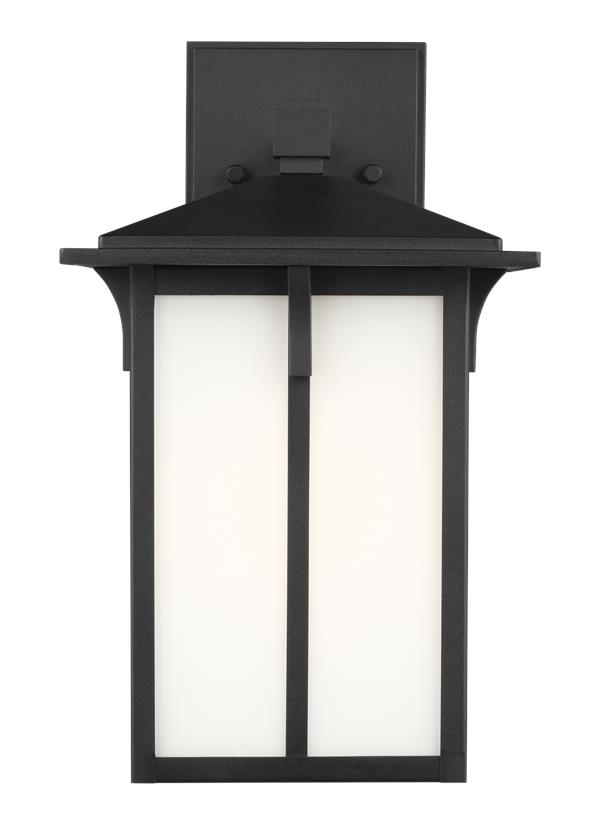

8652701-12: Medium One Light Outdoor Wall Lantern


Collection:  Tomek

Traditional elements are updated with contemporary lines with a sense of Asian-inspired styling.

Two finish options available: Antique Bronze and Black

Etched White inside glass panels

Assortment includes: small, medium, and large one-light lanterns; one-light post lantern; two-light flush mount and one-light pendant.

Wet Rated

UPC #:785652077036

Finish:   Black (12)
Dimensions:

Width: 8 3/8''
Height: 14''
Weight: 4.53 lbs.
Extends: 9 7/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_52701-TOM)
Trilingual (English, Spanish, and French) (8552701 8652701 8752701)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Etched / White Inside 4     5 1/2 9
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 9  5  1    2 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8652701-12 1  785652077036  17.25 10.5 12 1.258 5.5 0 Yes
Master Pack 8652701-12 0  10785652077033
NJ Pallet   48    48 40 68.5 76.111 264 No
NV Pallet   48    48 40 68.5 76.111 264 No
