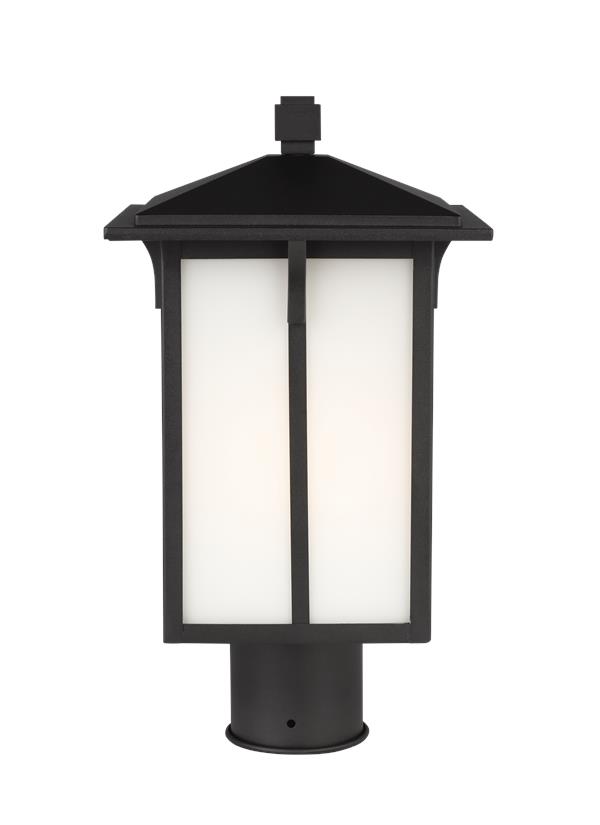

8252701-12: One Light Outdoor Post Lantern



Collection:  Tomek


Traditional elements are updated with contemporary lines with a sense of Asian-inspired styling.

Two finish options available: Antique Bronze and Black

Etched White inside glass panels

Assortment includes: small, medium, and large one-light lanterns; one-light post lantern; two-light flush mount and one-light pendant.

Wet Rated

UPC #:785652076992

Finish:   Black (12)

Dimensions:

Length: 8 3/8"
Width: 8 3/8''
Height: 15 3/8''
Weight: 4.08 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Post Mount
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8252701)
Trilingual (English, Spanish, and French) (8252701)
Trilingual (English, Spanish, and French) (990OP8252701-TOM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Etched / White Inside 4     5 1/2 9
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Post     3 5/32
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8252701-12 785652076992  17 10.75 10.75 1.137 5 0 Yes
Master Pack 8252701-12 10785652076999
NJ Pallet   54    48 40 70 77.778 270 No
NV Pallet   54    48 40 70 77.778 270 No
