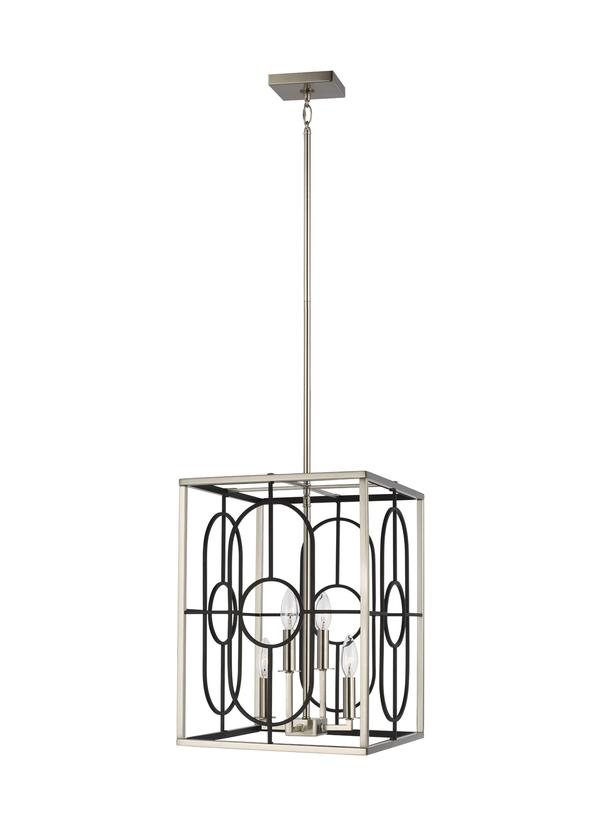

5121804-962: Small Four Light Hall / Foyer


Collection:  Rennie

Traditional iron forms and casual styling available in three finishes

Radiating refined, modern elegance, this clean-lined lantern is crafted of steel with an open frame

Available in Brushed Nickel with Black accent

Assortment offers four-light small lantern, four-light large lantern and one-light wall sconce

Damp Rated

UPC #:785652077401

Finish:   Brushed Nickel (962)
Dimensions:

Length: 13 3/8"
Width: 13 3/8''
Height: 18''
Weight: 13.6 lbs.
Overall Height: 63 5/8''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  4 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
1 Accents - Steel - Midnight Black
1 6" Stem - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P5_21804-RNE)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5121804-962 1  785652077401  22 16 16 3.259 14.8 175 Yes
NJ Pallet   20    48 40 68.5 76.111 296 No
NV Pallet   20    48 40 68.5 76.111 296 No
