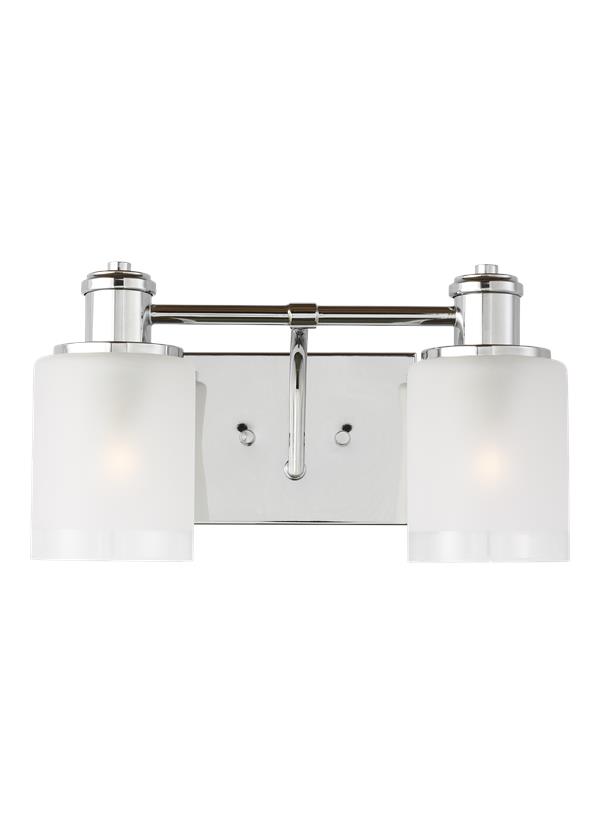

4439802-05: Two Light Wall / Bath


Collection:  Norwood

Traditional iron forms and casual styling available in three finishes

Cool and sleek modern design that can be mounted up or down

Available in two finishes: Brushed Nickel and Burnt Sienna

Norwood offers a "whole home" lighting solution, offering three-, five-, nine-, or twelve-light chandeliers; and one-two-three-and four-light bath vanity fixtures.

Fixture may be mounted in the up or down position

UPC #:785652076107

Finish:   Chrome (05)
Dimensions:

Width: 14 1/8''
Height: 7 7/8''
Weight: 3 lbs.
Extends: 7 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (4439802)
Trilingual (English, Spanish, and French) (990W4_3980_-NOR)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Highlighted Satin Etched 2 G560354-675     5 1/4 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  7  7/8    3 7/16  4 7/16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4439802-05 1  785652076107  15.5 9.5 11.75 1.001 4.1 0 Yes
Master Pack 4439802-05 0  10785652076104
NJ Pallet   72    48 40 76.5 85 295.2 No
NV Pallet   72    48 40 76.5 85 295.2 No
