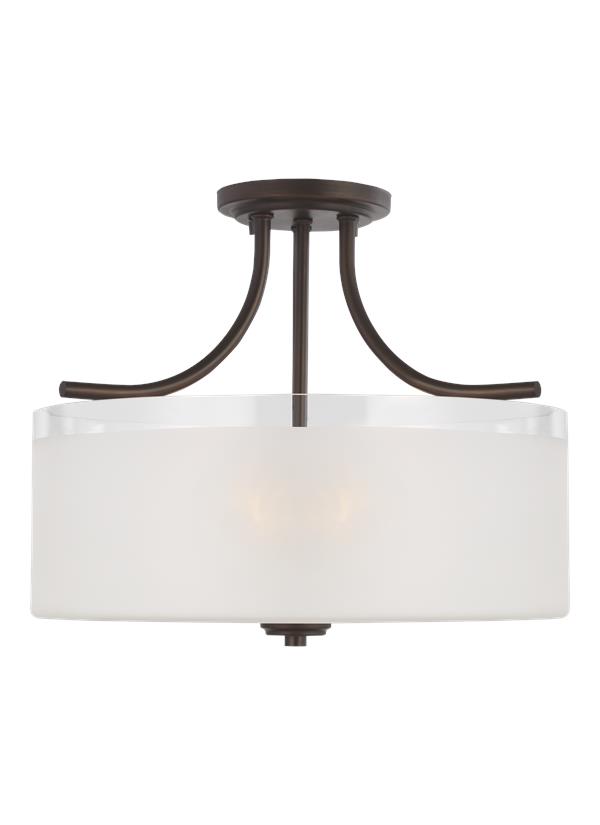

7739803-710: Three Light Semi-Flush Mount



Collection:  Norwood


A simple, Clear Highlighted Satin Etched glass shade nestles inside a die-cast frame.

Cool and sleek modern design that can be mounted up or down

Available in two finishes: Brushed Nickel and Burnt Sienna

Norwood offers a "whole home" lighting solution, offering three-, five-, nine-, or twelve-light chandeliers; and one-two-three-and four-light bath vanity fixtures.

Meets Title 24 energy efficiency standards

UPC #:785652079207

Finish:   Bronze (710)

Dimensions:

Diameter: 15 1/4''
Height: 13''
Weight: 7.1 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7739803-NOR)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Highlighted Satin Etched 1 G560356-675     5 7/8 15
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7739803-710 785652079207  18.75 19.25 12.5 2.611 10 0 Yes
Master Pack 7739803-710 10785652079204
NJ Pallet   25    48 40 74.5 82.778 250 No
NV Pallet   25    48 40 74.5 82.778 250 No
