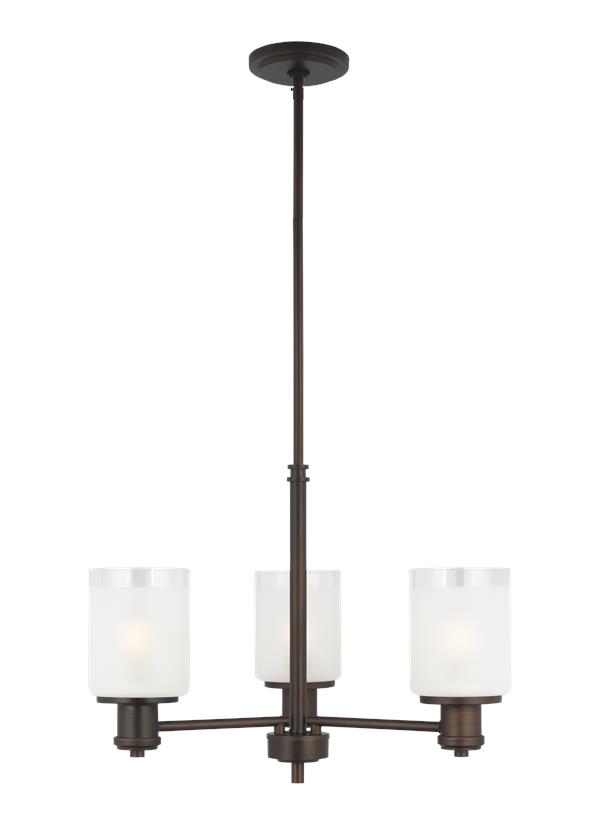

3139803-710: Three Light Chandelier


Collection:  Norwood

Traditional iron forms and casual styling available in three finishes

3 A19 Medium 75 watt light bulbs

Available in two finishes: Brushed Nickel and Burnt Sienna

Norwood offers a "whole home" lighting solution, offering three-, five-, nine-, or twelve-light chandeliers; and one-two-three-and four-light bath vanity fixtures.

Sloped ceiling mounting hardware included

UPC #:785652075919

Finish:   Bronze (710)
Dimensions:

Diameter: 20''
Height: 14''
Weight: 5.3 lbs.
Overall Height: 58 1/2''
Wire: 72'' (color/Brown)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
1 6" Stem - Steel - Bronze
3 12" Stem - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (3139803 3139805 3139809)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Highlighted Satin Etched 3 G560354-675     5 1/4 4 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3139803-710 1  785652075919  20.5 8.5 15.25 1.538 6.8 0 Yes
Master Pack 3139803-710 0  10785652075916
NJ Pallet   46    48 40 74 82.222 312.8 No
NV Pallet   46    48 40 74 82.222 312.8 No
