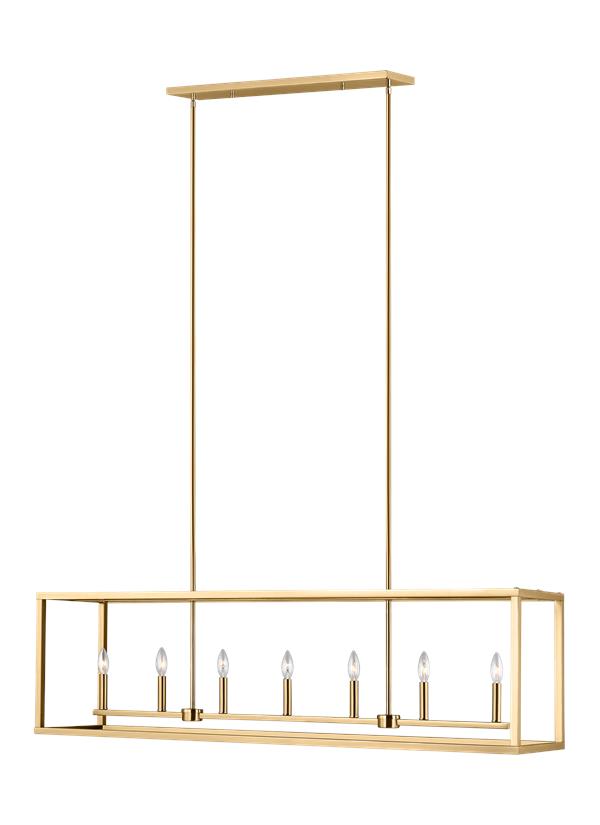

6634507-848: Long Seven Light Island Pendant


Collection:  Moffet Street

Traditional iron forms and casual styling available in three finishes

7 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652078101

Finish:   Satin Brass (848)
Dimensions:

Length: 54"
Width: 12''
Height: 15''
Weight: 19.2 lbs.
Overall Height: 59 1/8''
Wire: 120'' (color/Clear Gold)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  7 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
2 6" Stem - Steel - Satin Brass
6 12" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6634506 6634507)
Trilingual (English, Spanish, and French) (6634506 6634507)
Trilingual (English, Spanish, and French) (990P6634506-MOF)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4  25 1/8  5 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6634507-848 1  785652078101  57.5 19 15 9.484 25.6 0 Yes
Master Pack 6634507-848 0  10785652078108
NJ Pallet   8    72 40 77 128.333 204.8 No
NV Pallet   8    72 40 77 128.333 204.8 No
