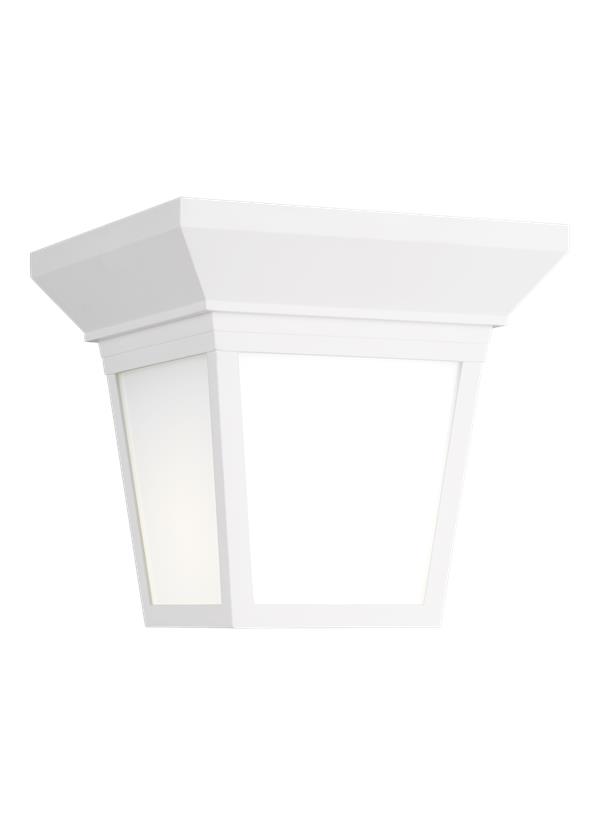

7546701-15: One Light Outdoor Ceiling Flush Mount

	Collection: Lavon
	Traditional iron forms and casual styling available in three finishes
	1 A19 Medium 60 watt light bulb
	smooth white glass panels
	Meets Title 24 energy efficiency standards
	Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
	UPC #:785652078965
	Finish: White (15)

Dimensions:


Length:	7 1/4"
Width:	7 1/4''
Height:	6 7/8''

Weight:

1.81 lbs.

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Bulbs:

1 - Medium A19 60w Max. 120v - Not included

Features:

Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - Polypropylene - White

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (7546701)
Trilingual (English, Spanish, and French) (990C7546701-OCL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Smooth White

4 5/8

5 1/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 15/16	5 7/8	5 7/8

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	7546701-15	1	785652078965	9.5	7.75	8	0.341	2.1	0	Yes
Master Pack	7546701-15	0	10785652078962
NJ Pallet		225		48	40	75	83.333	472.5		No
NV Pallet		225		48	40	75	83.333	472.5		No
