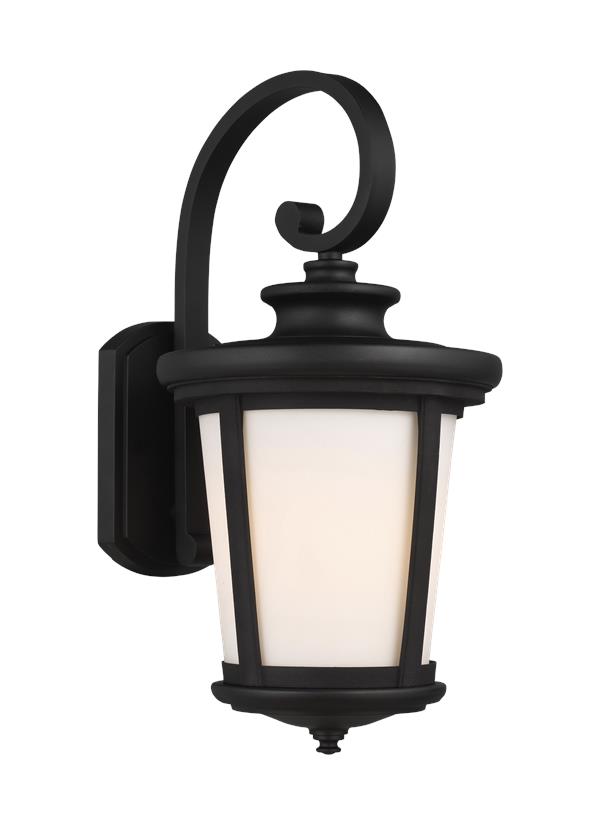

8719301-12: Large One Light Outdoor Wall Lantern



Collection:  Eddington


Eddington has a vintage classic look with the advantages of modern technology.

Cast aluminum, energy efficient fixtures with a powder coat finish for durability.

Two finish options available: Antique Bronze and Black

Assortment includes: small, medium, large and extra large one-light lanterns; one-light upright lantern; one-light post lantern and a one-light pendant

Meets Title 24 energy efficiency standards

UPC #:785652077180

Finish:   Black (12)

Dimensions:

Width: 10''
Height: 19 7/8''
Weight: 4.73 lbs.
Extends: 12 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (8519301 8619301 8719301)
Trilingual (English, Spanish, and French) (990W8_19301-EDD)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Cased Opal Etched 1       8 1/2 7 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate   11
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8719301-12 785652077180  21.5 12.75 15 2.38 6.7 0 Yes
Master Pack 8719301-12 10785652077187
NJ Pallet   25    48 40 70 77.778 167.5 No
NV Pallet   25    48 40 70 77.778 167.5 No
