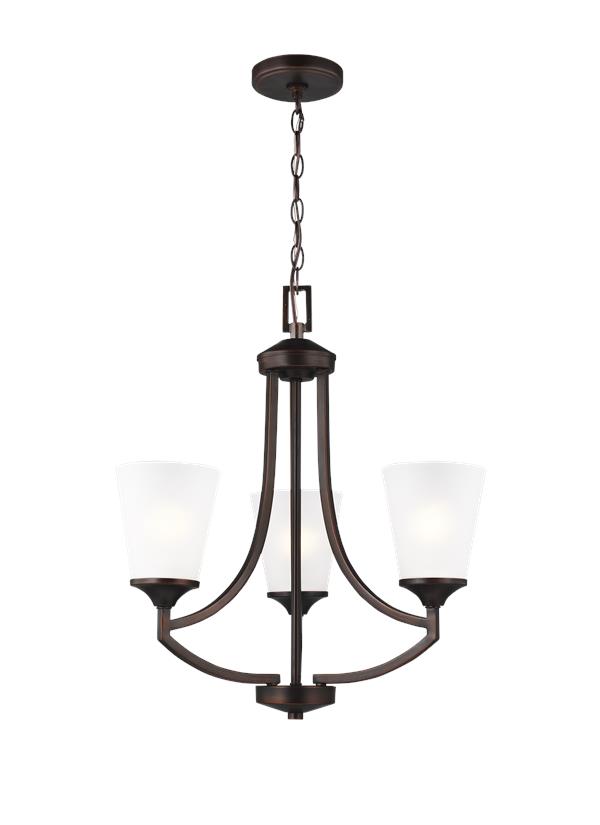

3124503-710: Three Light Chandelier


Collection:  Hanford

Traditional iron forms and casual styling available in three finishes

3 A19 Medium 75 watt light bulbs

Satin etched glass shades

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652110726

Finish:   Bronze (710)
Dimensions:

Diameter: 20''
Height: 22''
Weight: 7.7 lbs.
Overall Height: 60 1/4''
Wire: 72'' (color/Brown)
Chain: 36''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Bronze
1 Chain - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH31245_-HAN)
Trilingual (English, Spanish, and French) (990CH312450_-HAN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 3 G560251-619     5 3/4 5 1/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3124503-710 1  785652110726  22 12.25 13.75 2.144 10.2 0 Yes
Master Pack 3124503-710 0  10785652110723
NJ Pallet   30    48 40 66 73.333 306 No
NV Pallet   30    48 40 66 73.333 306 No
