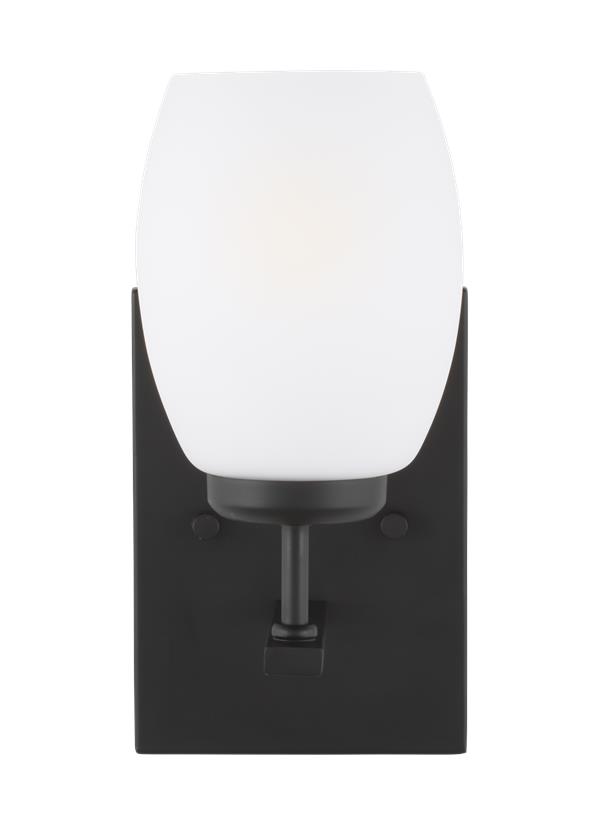

4118501-112: One Light Wall / Bath Sconce


Collection:  Catlin

Traditional iron forms and casual styling available in three finishes

Fixture may be mounted in the up or down position

Available in three finishes: Black, Chrome and Satin Bronze

Assortment includes: one-,two-, three- and four-light vanity fixtures.

Damp Rated

UPC #:785652074929

Finish:   Midnight Black (112)
Dimensions:

Width: 5''
Height: 10''
Weight: 1.32 lbs.
Extends: 6 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Midnight Black
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4_1850_-CAT)
Trilingual (English, Spanish, and French) (4418502 4418504)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560351-303     5 1/2 4 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7  5  3/4    6 1/2  3 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4118501-112 1  785652074929  13.25 8.5 8.25 0.538 2.4 0 Yes
Master Pack 4118501-112 0  10785652074926
NJ Pallet   144    48 40 71 78.889 345.6 No
NV Pallet   144    48 40 71 78.889 345.6 No
