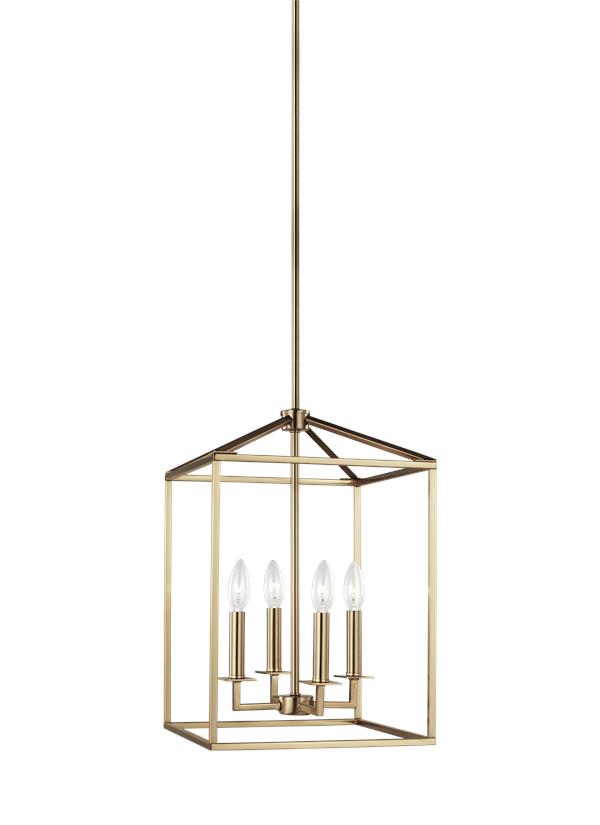

5215004-848: Small Four Light Hall / Foyer


Collection:  Perryton

Traditional iron forms and casual styling available in four finishes

Perfect statement piece over a kitchen counter or dining table.

Includes two sets of candle covers in Satin Bronze and Cream finishes.

Clear bulb(s) recommended for this fixture

Sloped ceiling mounting hardware included

UPC #:785652078378

Finish:   Satin Brass (848)
Dimensions:

Length: 12 1/4"
Width: 12 1/4''
Height: 18 1/2''
Weight: 6.7 lbs.
Overall Height: 65''
Wire: 120'' (color/Clear Gold)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  4 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (5115004 5115008 5215004 5315008)
Trilingual (English, Spanish, and French) (5115004 5115008 5215004 5315008)
Trilingual (English, Spanish, and French) (990P5_1500_-PER)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5215004-848 1  785652078378  22.5 15 15.25 2.979 9 0 Yes
Master Pack 5215004-848 0  10785652078375
NJ Pallet   20    48 40 65 72.222 180 No
NV Pallet   20    48 40 65 72.222 180 No
