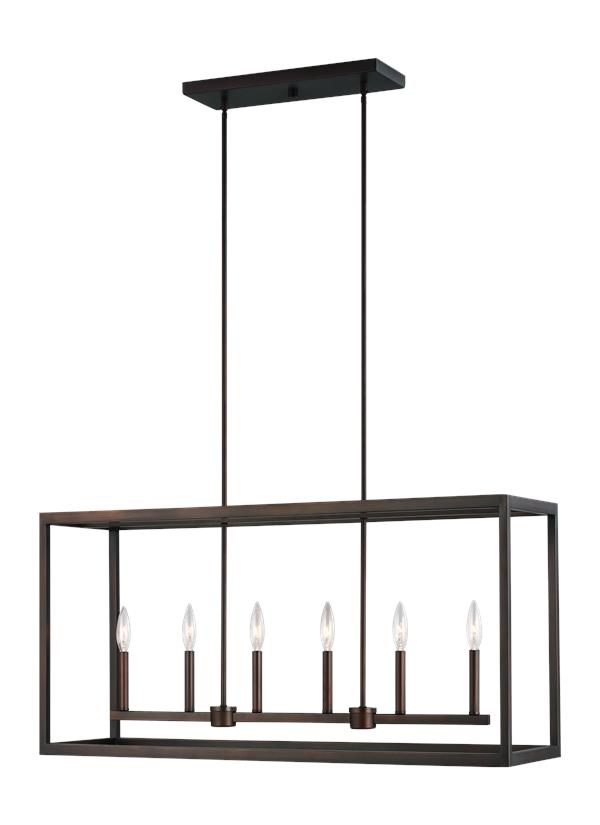

6634506-710: Six Light Island Pendant


Collection:  Moffet Street

Traditional iron forms and casual styling available in three finishes

6 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652078170

Finish:   Bronze (710)
Dimensions:

Length: 42"
Width: 12''
Height: 15''
Weight: 16.9 lbs.
Overall Height: 59 1/8''
Wire: 120'' (color/Brown)
Mounting Proc.: Single Cap Nut
Connection: Mounted To Box
Bulbs:
  6 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
2 6" Stem - Steel - Bronze
6 12" Stem - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6634506 6634507)
Trilingual (English, Spanish, and French) (6634506 6634507)
Trilingual (English, Spanish, and French) (990P6634506-MOF)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4  17 3/4  5 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6634506-710 1  785652078170  45 19 15.25 7.546 21.4 0 No
Master Pack 6634506-710 0  10785652078177
NJ Pallet   8    48 40 65.5 72.778 171.2 No
NV Pallet   8    48 40 65.5 72.778 171.2 No
