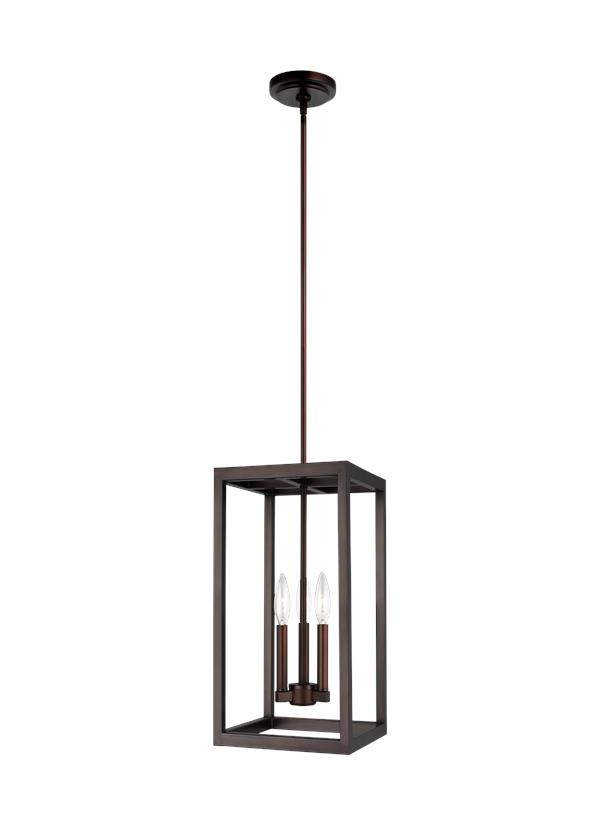

5134503-710: Small Three Light Hall / Foyer


Collection:  Moffet Street

Traditional iron forms and casual styling available in three finishes

3 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652078149

Finish:   Bronze (710)
Dimensions:

Length: 10 1/2"
Width: 10 1/2''
Height: 15''
Weight: 8.2 lbs.
Overall Height: 61''
Wire: 120'' (color/Brown)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  3 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bronze
1 6" Stem - Steel - Bronze
3 12" Stem - Steel - Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)
Trilingual (English, Spanish, and French) (5134503 5134504 5134508 5234508)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134503-710 1  785652078149  19 13.25 13.5 1.967 8.3 0 Yes
Master Pack 5134503-710 0  10785652078146
NJ Pallet   30    48 40 72.5 80.556 249 No
NV Pallet   30    48 40 72.5 80.556 249 No
