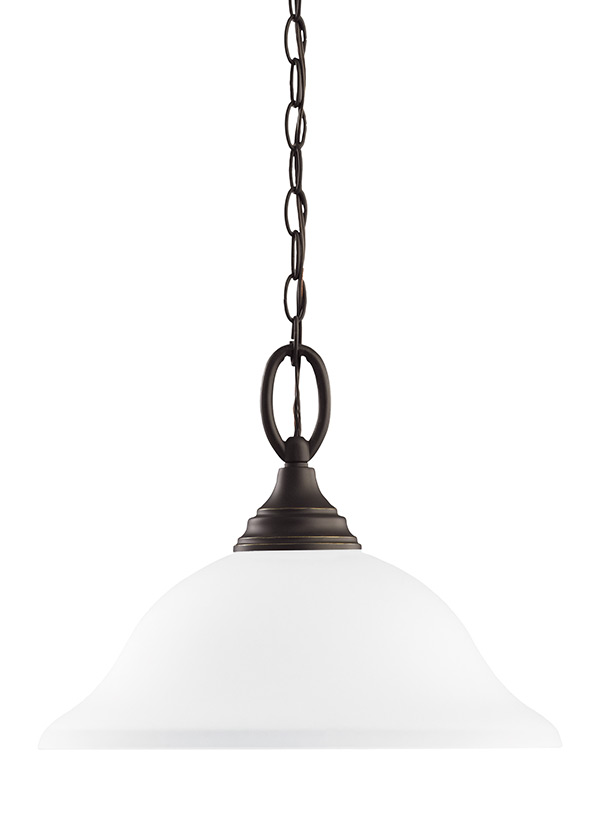

65625-782: One Light Pendant


Collection:  Wheaton

Downlight Pendant in Heirloom Bronze Finish with Satin Etched Glass Shade

Featured in the decorative Wheaton collection

1 A19 Medium 150 watt light bulb

Satin Etched glass shade

A decorative canopy is included

Easily converts to LED with optional replacement lamps

UPC #:785652656330

Finish:   Heirloom Bronze (782)
Dimensions:

Diameter: 15 1/4''
Height: 12 1/2''
Weight: 6.7 lbs.
Overall Height: 135 1/4''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 150w Max. 120v - Not included
Features:
  • A decorative canopy is included
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Heirloom Bronze
1 Chain - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
English (HC-1563)
French (F-004)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 1       5 7/8 15 1/4 1 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/8      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 65625-782 1  785652656330  18 17.75 9.75 1.803 8.4 175 Yes
NJ Pallet   36    48 40 75 83.333 302.4 No
NV Pallet   36    48 40 75 83.333 302.4 No
