  Product Number: 59495BLE-15

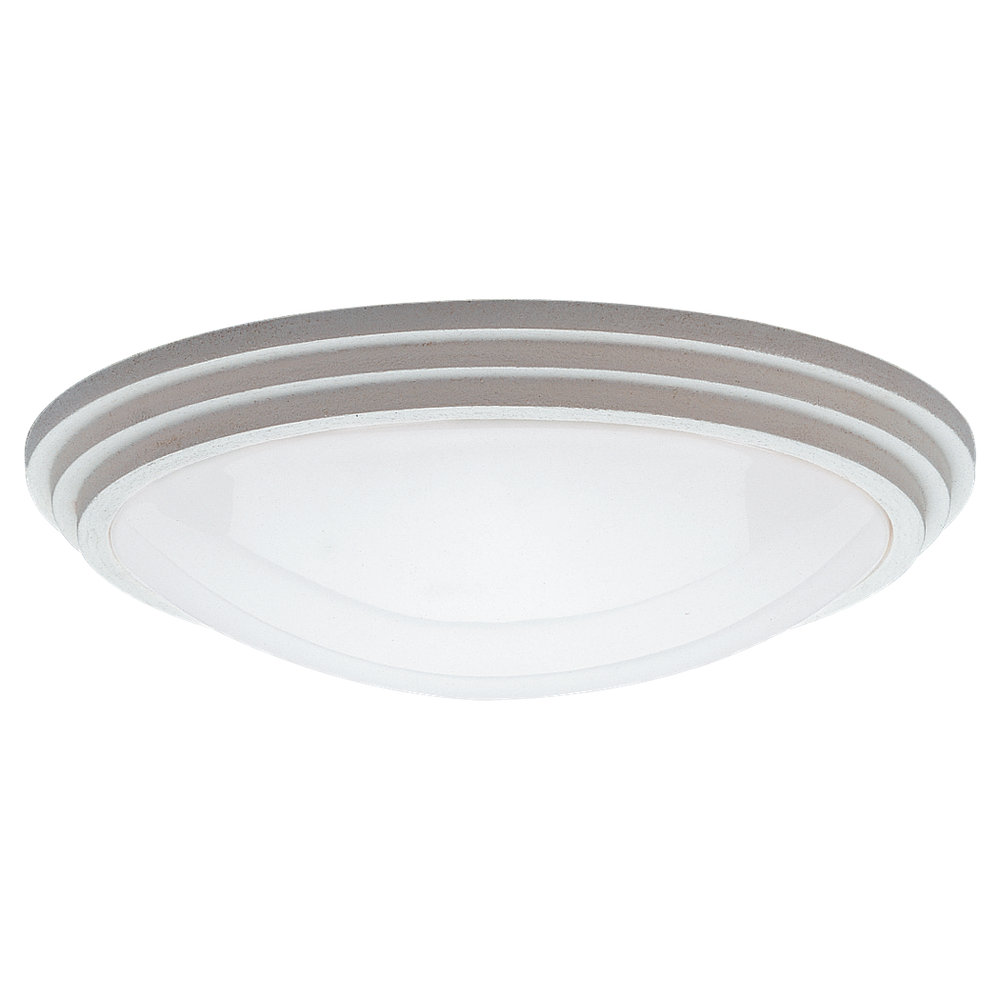

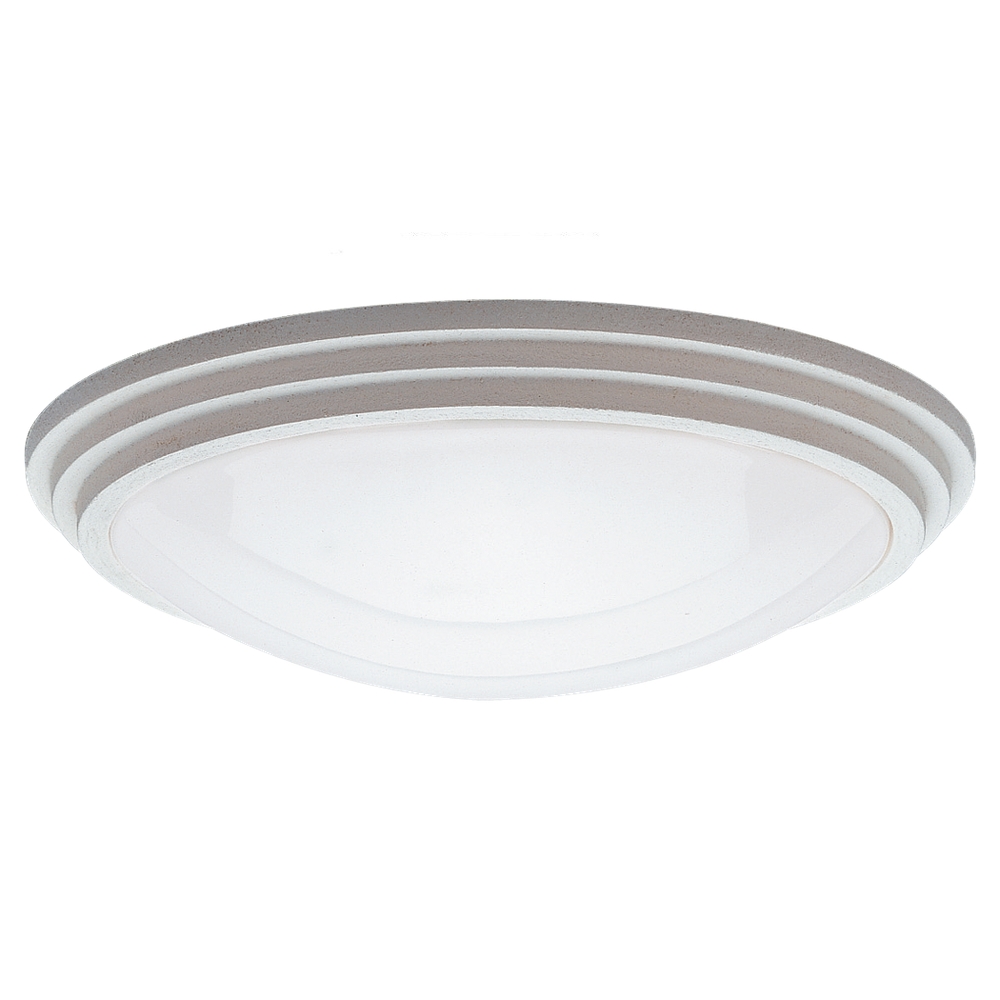

  59495BLE-15 - Compact Ceiling Fluorescent Light
  Collection:  Stepped Ceiling Fluorescent
  Compact Circline Fluorescent one Light with White Stepped Trim and Acrylic Dome Diffuser.
  Compact Circline energy saving Fluorescent ceiling fixture with White Stepped Trim and Acrylic Dome Diffuser.
  Ref. fix. 5995-15

  UPC #:  785652593932   Product Type:   Fluorescent Ceiling
  Finish:   White (15)
  Features:
Energy Star Compliant Fluorescent
Title 24

  Dimensions:
Diameter: 24 1/4''
Height: 5''
Wire: 6 1/2''
Switch Type: N/A
Mounting Proc.: Key Slots
Outlet Box: Mounted To Box

  Bulbs:
  1 - G10Q 2C40W 40w max 120v - included

  Material List:
1 Trim - Resin - White

  Saftey Listing:
  Not Listed Listed

  Instruction Sheets
French (F-001)
English (A-779)
English (HC-327)

  Shade / Diffuser
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic White 1

  Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97042         40   120v 10000 2700   2850 82

  Shipping Information
Package Type Quantity UPC Length Width Height Cube Weight UPS Ship Label
Individual 1  785652593932  25.5 25.5 11 4.139 13.8 Yes F E-1 IP
NJ Pallet 16    48 40 72 80 220.8 No
NV Pallet 16    48 40 72 80 220.8 No
