Job Name:   Job Type:
Comments:   Quantity:
  Product Number: 5934LE-15

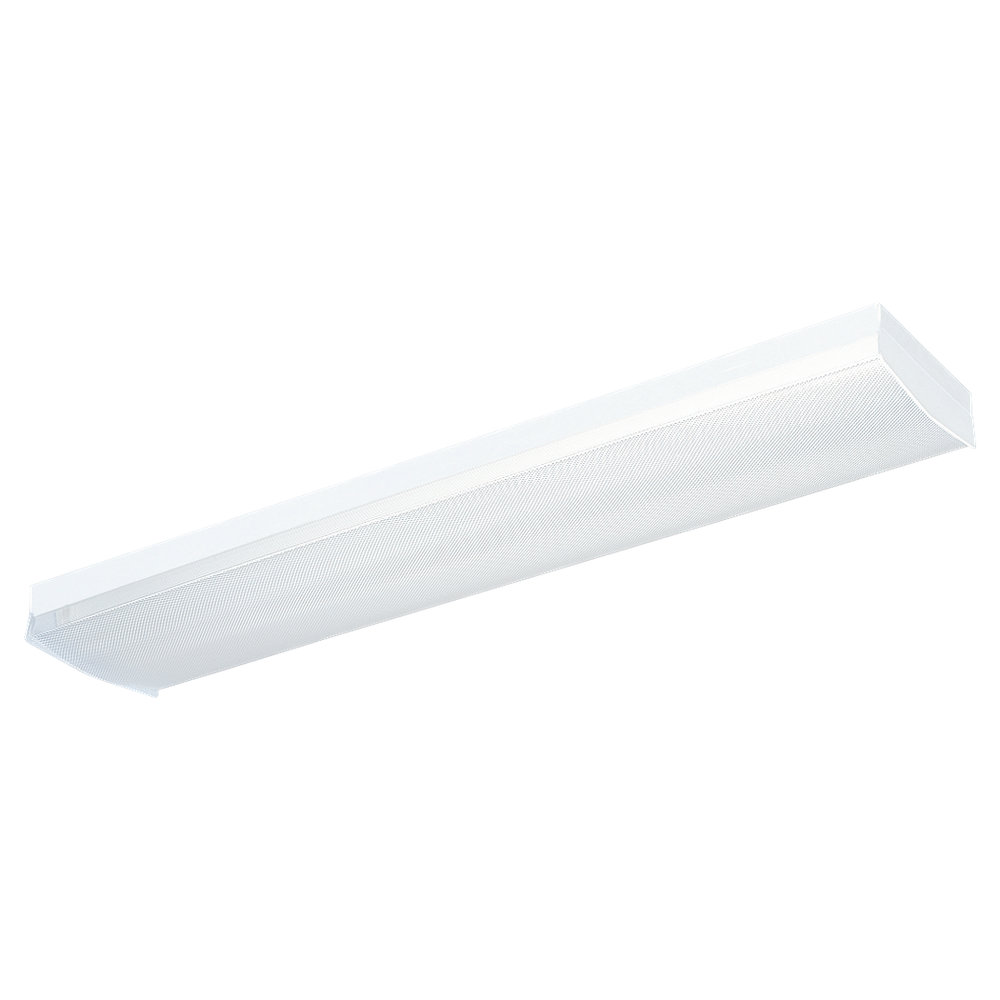

  5934LE-15 - Two-Light Complete Fluorescent Fixture
  Collection:  Drop Lens Fluorescent
  Two Light Fluorescent Trim and Chassis with White Trim and Clear Textured Acrylic Diffuser.
  Complete fluorescent fixture with white frame and clear textured acrylic diffuser. An ENERGY STAR Qualified fixture.
  Ref. fix. 5934L-15; Complete Fixture

  UPC #:  785652593017   Product Type:   Fluorescent Ceiling
  Finish:   White (15)
  Features:
Energy Star Compliant Fluorescent
Title 24

  Dimensions:
Length: 48"
Width: 9''
Height: 3 1/4''
Switch Type: N/A
Mounting Proc.: Other
Outlet Box: Mounted To Box

  Bulbs:
  2 - Bi-Pin T-8 32w max 120v - Not included

  Material List:
1 Trim - Steel - White

  Saftey Listing:
  cUL Listed for Damp Locations
UL Listed for Damp Locations

  Instruction Sheets
English (A-779)
English (HC-300)

  Shade / Diffuser
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic Clear Textured 1


  Shipping Information
Package Type Quantity UPC Length Width Height Cube Weight UPS Ship Label
Individual 1  785652593017  49.5 9.75 3.5 0.978 14.5 Yes 23 E-8 IP
NJ Pallet 79    48 40 58 64.444 1145.5 No
NV Pallet 60    48 40 58 64.444 870 No
