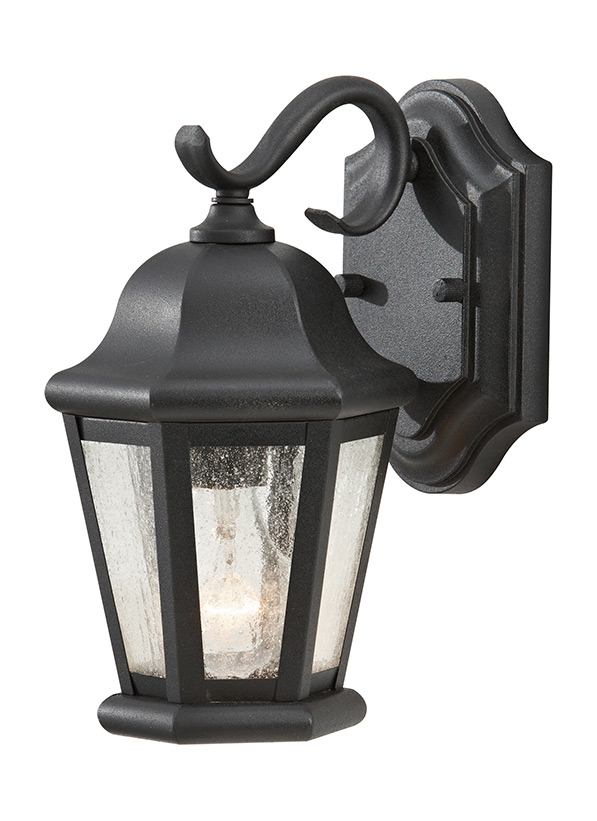

OL5900BK: Small One Light Outdoor Wall Lantern


Collection:  Martinsville

UPC #:014817478181

Finish:   Black (BK)
Dimensions:

Width: 6 1/4''
Height: 10 3/4''
Weight: 2.09 lbs.
Extends: 7 1/4''
Wire: 8'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Stainless Steel - Black
1 Canopy - Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (2019)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 6     2 1/2 4 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7  5  1 1/8    3 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual OL5900BK 1  014817478181  10 8.75 12.75 0.646 3.75 0 Yes
Master Pack OL5900BK 2  10014817478188  18 10.5 14 1.531 8.8 0 Yes
NJ Pallet   72    48 40 75 83.333 316.8 No
NV Pallet   84    48 40 79 87.778 396.6 No
