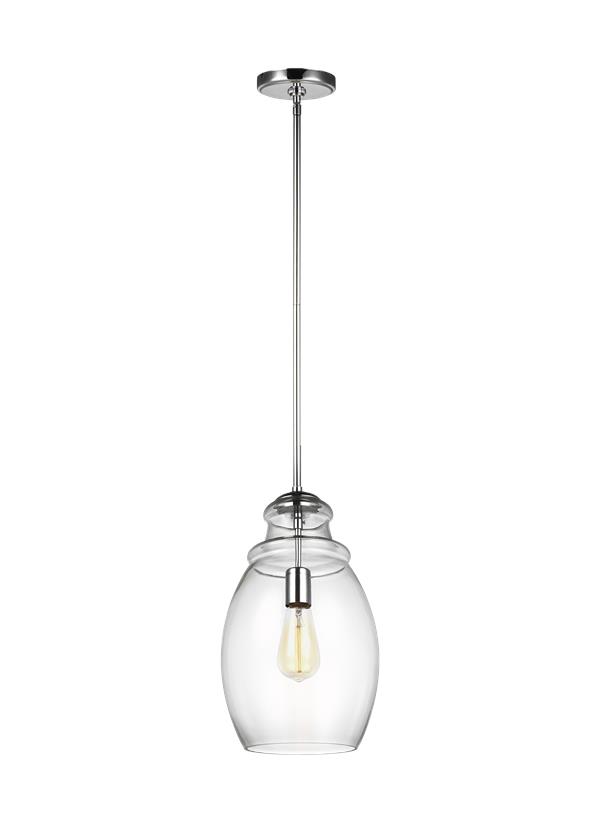

P1484CH: One Light Pendant



Collection:  Marino


UPC #:014817581362

Finish:   Chrome (CH)

Dimensions:

Diameter: 9 1/4''
Height: 16 1/4''
Weight: 2.25 lbs.
Overall Height: 62 1/8''
Wire: 180'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  1 - Medium ST19 60w Max. 120v - Not included
0 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Vintage lamp(s) recommended for aesthetics
Material List:
1 Body - Steel - Chrome
1 6" Stem - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (P1484)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear 1       14 3/4 9 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual P1484CH 014817581362  19.25 12.25 12 1.638 7.8 175 Yes
NJ Pallet   48    48 40 74 82.222 374.4 No
NV Pallet   48    48 40 74 82.222 374.4 No
