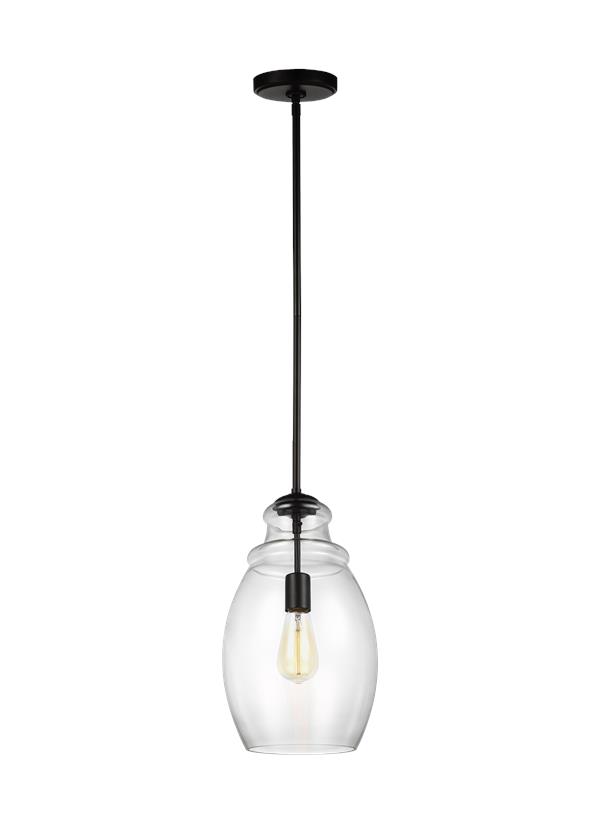

P1484ORB: One Light Pendant

	Collection: Marino
	UPC #:014817581379
	Finish: Oil Rubbed Bronze (ORB)

Dimensions:


Diameter:	9 1/4''
Height:	16 1/4''

Weight:

2.25 lbs.

Overall Height:

62 1/8''

Wire:

180'' (color/Brown)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Bulbs:

1 - Medium ST19 60w Max. 120v - Not included
0 - Medium A19 60w Max. 120v - Not included

Features:

This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Vintage lamp(s) recommended for aesthetics

Material List:

1 Body - Steel - Oil Rubbed Bronze

1 6" Stem - Steel - Oil Rubbed Bronze

3 12" Stem - Steel - Oil Rubbed Bronze

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (P1484)
Trilingual (English, Spanish, and French) (p1484)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear

14 3/4

9 1/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	P1484ORB	1	014817581379	19.25	12.25	12	1.638	7.2	0	Yes
Master Pack	P1484ORB	0	10014817581376
NJ Pallet		48		48	40	75.75	84.167	345.6		No
NV Pallet		48		48	40	75.75	84.167	345.6		No
