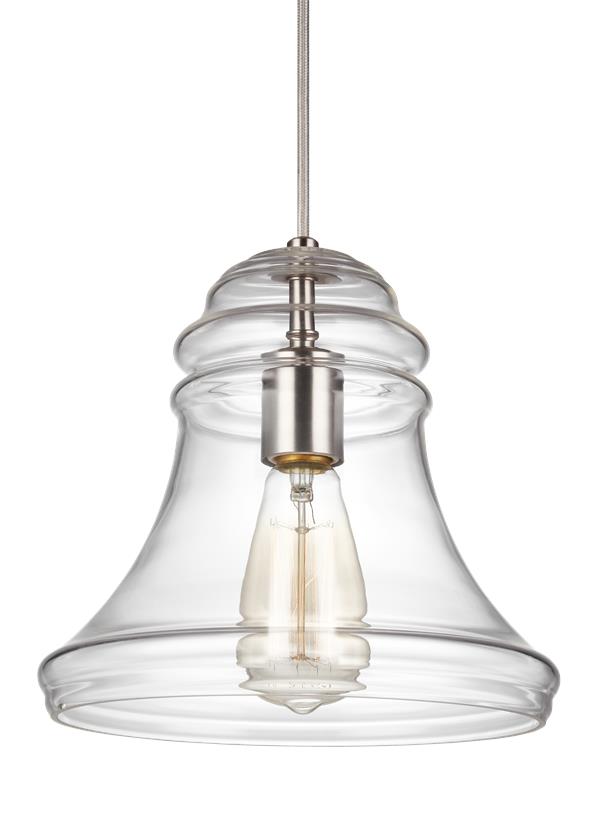

P1440SN: One Light Mini-Pendant

	Collection: Doyle
	UPC #:014817569957
	Finish: Satin Nickel (SN)

Dimensions:


Diameter:	9 3/4''
Height:	9 1/2''

Weight:

4.07 lbs.

Overall Height:

191 3/4''

Wire:

180'' (color/Silver Braided)

Mounting Proc.:

Set Screw(s)

Connection:

Mounted To Box

Bulbs:

1 - Medium ST19 75w Max. 120v - Not included
0 - Medium A19 75w Max. 120v - Not included

Features:

Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Vintage lamp(s) recommended for aesthetics

Material List:

1 Body - Steel - Satin Nickel

Safety Listing:

Safety Listed for Damp Locations

Instruction Sheets:

English (P1440)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear

9 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1			5

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	P1440SN	1	014817569957	13.75	13.5	13.75	1.477	5.1	0	Yes
Master Pack	P1440SN	0	10014817569954
NJ Pallet		45		48	40	71.5	79.444	229.5		No
NV Pallet		45		48	40	71.5	79.444	229.5		No
