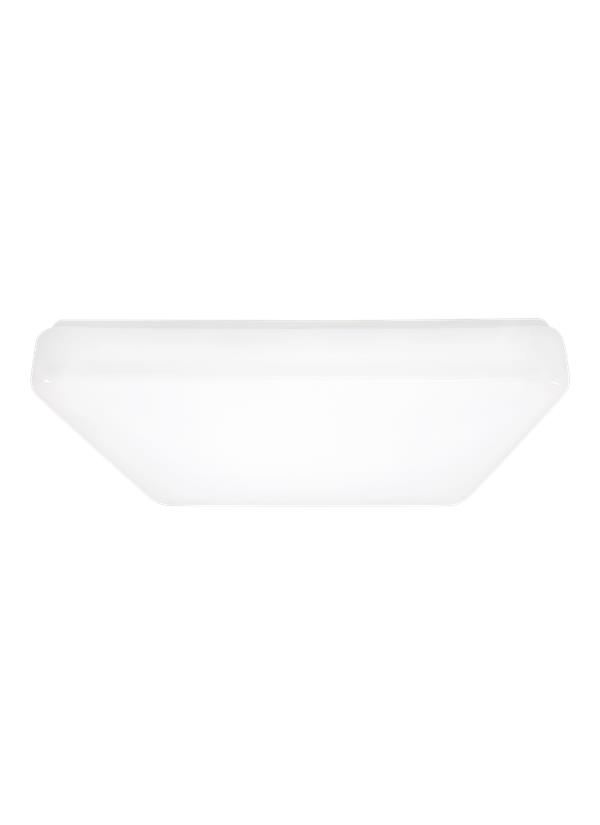

5776093S-15: Large LED Square Ceiling Flush Mount


Collection:  Vitus

Integrated LED Close to Ceiling Fixture in White Finish with Frosted White Acrylic Diffuser.

ENERGY STAR Qualified, Shatter resistant design offer trouble free solutions.

Featured in the decorative Vitus collection

LED

white acrylic diffuser

Fixture may be mounted on wall or ceiling.

ENERGY STAR® Qualified

UPC #:785652072611

Finish:   White (15)
Dimensions:

Length: 16"
Width: 16''
Height: 3 1/4''
Weight: 3.7 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 34
Watts Consumed: 34
Watts Rated: 34
Hours Rated: 50000
Lumens: 2045
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Array 34w 120v - included
Features:
  • Fixture may be mounted on wall or ceiling.
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (5776093S)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic White 1   16 16 3 3/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 9/16  15 3/4  15 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5776093S-15 1  785652072611  18.25 18.25 5.25 1.012 4.3 0 Yes
Master Pack 5776093S-15 4  10785652072618  21.5 19.25 19.5 4.67 19.6 0 Yes
NJ Pallet   48    48 40 65 72.222 235.2 No
NV Pallet   48    48 40 65 72.222 235.2 No
