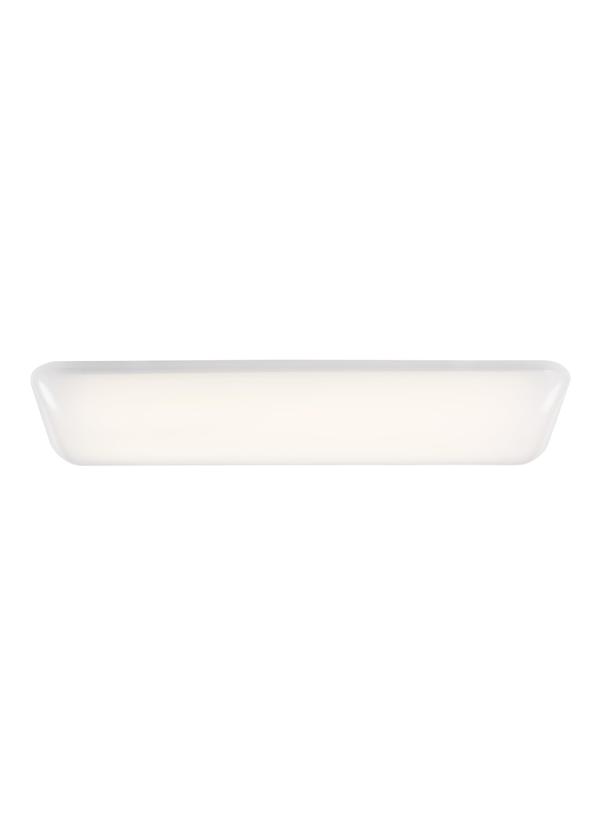

5727093S-15: Two Foot LED Ceiling Flush Mount


Collection:  Kolmar

LED Light Cloud in White Finish with White Acrylic Diffuser

Featured in the decorative Kolmar collection

LED

white acrylic diffuser

ENERGY STAR® Qualified

This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

UPC #:785652072703

Finish:   White (15)
Dimensions:

Length: 26"
Width: 10 1/4''
Height: 3 1/4''
Weight: 3.44 lbs.
Wire: 6 1/2'' (color/Black/White)
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 27
Watts Consumed: 27
Watts Rated: 27
Hours Rated: 50000
Lumens: 2100
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Array 27w 120v - included
Features:
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (5727093S-15)
Trilingual (English, Spanish, and French) (990C5_27093S-KOL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Acrylic White 1   26 10 1/4 3 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1  24  8 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5727093S-15 1  785652072703  29.5 12.5 6 1.28 4.3 0 Yes
Master Pack 5727093S-15 0  10785652072700
NJ Pallet   48    48 40 75 83.333 206 No
NV Pallet   48    48 40 75 83.333 206 No
