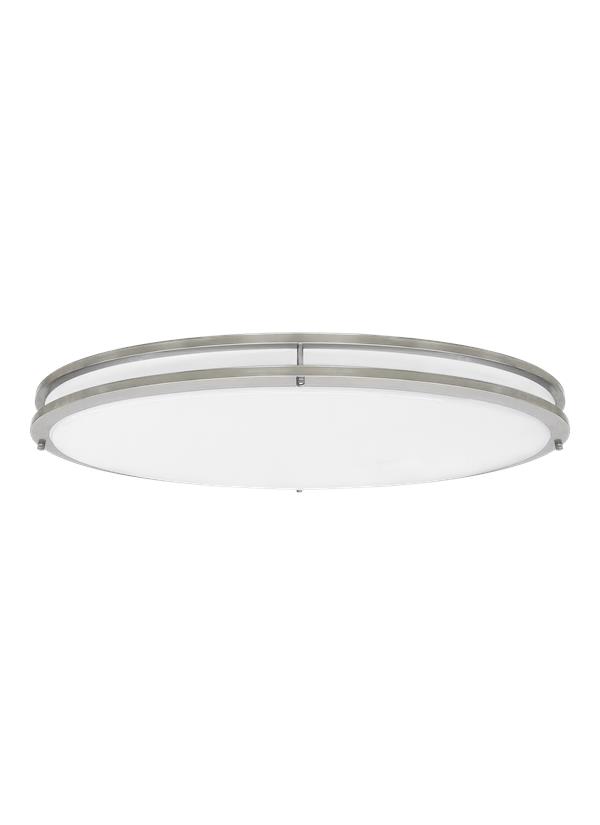

7950893S-962: Oval LED Ceiling Flush Mount



Collection:  Mahone


Integrated LED Ceiling Mounted Fixture in Heirloom Bronze Finish with White Acrylic Diffuser.

UPC #:785652066641

Finish:   Brushed Nickel (962)

Dimensions:

Length: 32 1/4"
Width: 18''
Height: 4''
Weight: 6.82 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Universal Mounting Plate
Connection: Mounted To Box
Bulb Type: Modules
Bulb Base: Integrated
Volts: 120
Watts: 53
Watts Consumed: 53
Watts Rated: 53
Hours Rated: 50000
Lumens: 3295
Bulb Temp: 3000 °K
CRI: 90
Features:
  • Fixture may be mounted on wall or ceiling.
  • ENERGY STAR® Qualified
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7_50893S-MAH)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Acrylic White 1   30 7/8 13 3/8 3 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/16  32 1/4  18
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7950893S-962 785652066641  35.5 20.75 6.75 2.877 9.7 250 Yes
NJ Pallet   26    48 40 73 81.111 252.2 No
NV Pallet   26    48 40 73 81.111 252.2 No
