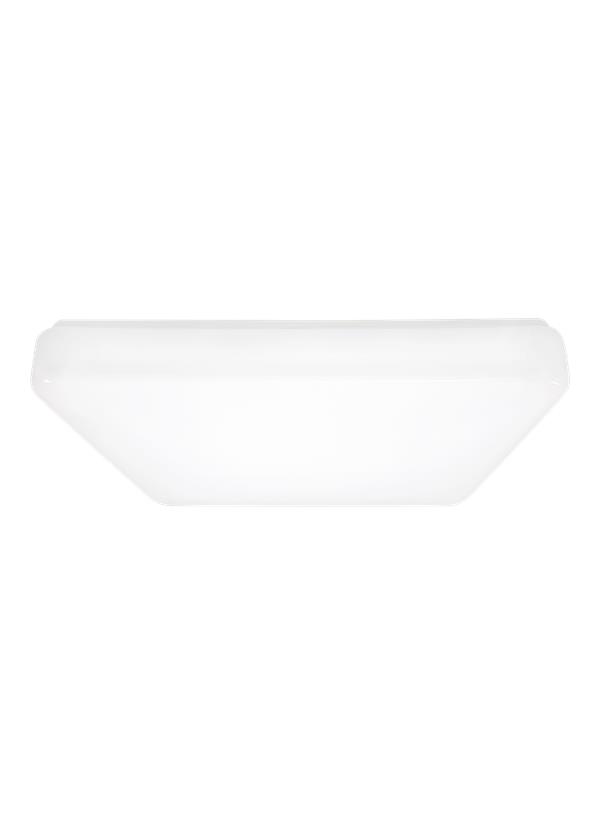

5676093S-15: Medium LED Square Ceiling Flush Mount



Collection:  Vitus


Integrated LED Close to Ceiling Fixture in White Finish with Frosted White Acrylic Diffuser.

ENERGY STAR Qualified, Shatter resistant design offer trouble free solutions.

UPC #:785652072604

Finish:   White (15)

Dimensions:

Length: 14 1/2"
Width: 14 1/2''
Height: 3 1/8''
Weight: 1.94 lbs.
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 23
Watts Consumed: 23
Watts Rated: 23
Hours Rated: 50000
Lumens: 1395
Bulb Temp: 3000 °K
CRI: 90
Features:
  • Fixture may be mounted on wall or ceiling.
  • ENERGY STAR® Qualified
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C5_76093S-VIT)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Diffuser Acrylic White 1   14 1/2 14 1/2 2 15/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1/2  14 1/8  14 1/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5676093S-15 785652072604  16 16 4.25 0.63 3.4 175 Yes
Master Pack 5676093S-15 10785652072601  22 17 16.25 3.517 18.7 175 Yes
NJ Pallet   100    48 40 75 83.333 374 No
NV Pallet   100    48 40 75 83.333 374 No
