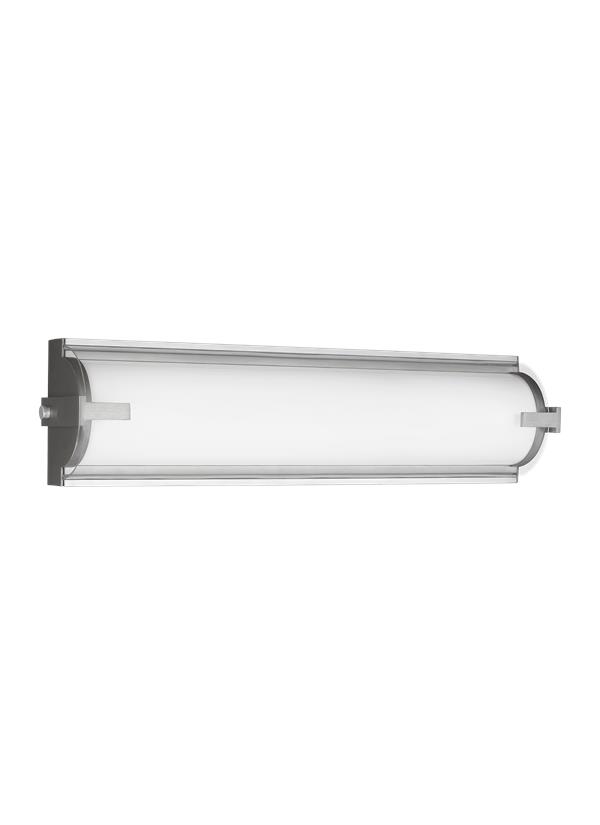

4435793S-04: Small LED Wall / Bath


Collection:  Braunfels

Featured in the decorative Braunfels collection

LED

Clear acrylic diffuser and frosted acrylic shade

Meets American with Disabilities Act standard extension requirements

This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.

UPC #:785652072789

Finish:   Satin Aluminum (04)
Dimensions:

Width: 20''
Height: 5''
Weight: 3.5 lbs.
Extends: 3 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulb Type: Array
Bulb Base: Integrated
Volts: 120
Watts: 16.5
Watts Consumed: 16.5
Watts Rated: 16.5
Hours Rated: 50000
Lumens: 660
Bulb Temp: 3000 °K
CRI: 90
Bulbs:
  1 - LED Integrated Array 16.5w 120v - included
Features:
  • Meets American with Disabilities Act standard extension requirements
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
  • Fixture may be mounted horizontal or vertical
  • Meets Title 24 energy efficiency standards
  • Integrated LED fixtures that meet the high efficacy LED standards set forth in Title 24 and are listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Satin Aluminum
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4_35791S-BRA)
Trilingual (English, Spanish, and French) (4435791S 4535791S 4635791S 4735791S)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Acrylic Frosted Acrylic 1 G620205-694 18 7/8 3 1/2 1 3/4
Diffuser Acrylic Clear 1 G620206-32 18 7/8 4 1/2 2 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  19  1 1/2    2 1/2  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4435793S-04 1  785652072789  23 7.75 6.5 0.671 4.1 0 Yes
Master Pack 4435793S-04 4  10785652072786  23.5 15.75 14.25 3.052 18.3 0 Yes
NJ Pallet   80    48 40 76.5 85 366 No
NV Pallet   64    48 40 61 67.778 291 No
