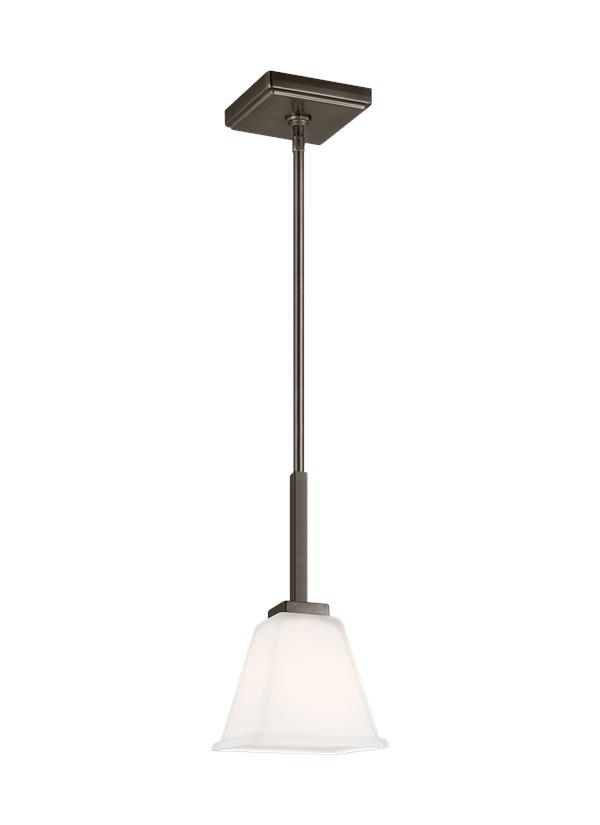

6113701-778: One Light Mini-Pendant


Collection:  Ellis Harper

Featured in the decorative Ellis Harper collection

1 A19 Medium 75 watt light bulb

Etched / white inside glass shade

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652069727

Finish:   Pewter Bronze (778)
Dimensions:

Length: 5 3/4"
Width: 5 3/4''
Height: 12''
Weight: 3.52 lbs.
Overall Height: 56 5/8''
Wire: 120'' (color/Brown)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Pewter Bronze
1 6" Stem - Steel - Pewter Bronze
3 12" Stem - Steel - Pewter Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (6113701)
Trilingual (English, Spanish, and French) (990P6113701-ELH)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 1   5 3/4 5 3/4 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1  5  5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4113701-778 1  785652069727  13.75 9 8 0.573 4.6 0 Yes
Master Pack 6113701-778 0  10785652069724
NJ Pallet   120    48 40 77 85.556 522 No
NV Pallet   120    48 40 77 85.556 522 No
