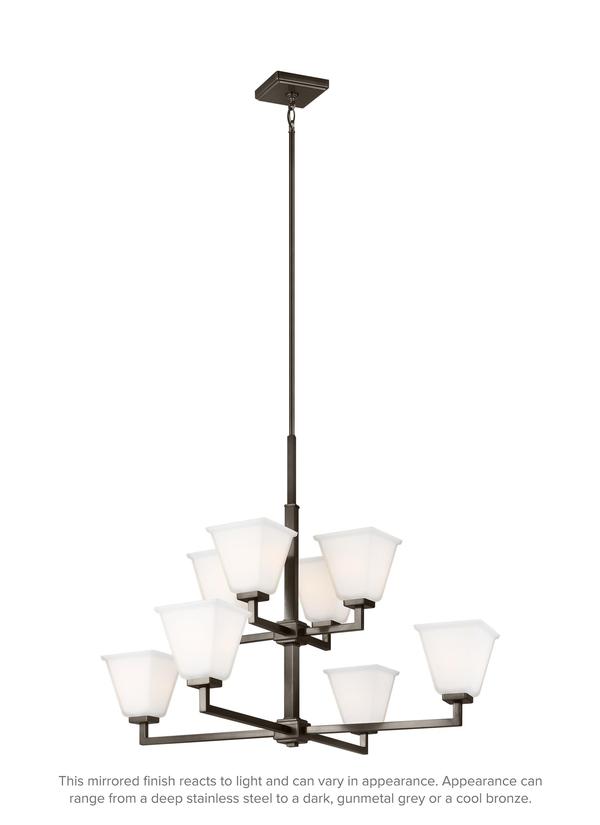

3113708EN3-778: Eight Light Chandelier


Collection:  Ellis Harper

Featured in the decorative Ellis Harper collection

8 A19 Medium 9.3 watt light bulbs

Fixture is supplied with 1 light bulbs

Etched / white inside glass shades

ENERGY STAR® Qualified

UPC #:785652071393

Finish:   Pewter Bronze (778)
Dimensions:

Length: 35 1/2"
Width: 35 1/2''
Height: 27 3/4''
Weight: 21.12 lbs.
Overall Height: 74 1/4''
Wire: 120'' (color/Brown)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 9
Lumens: 800
Bulb Temp: 3000 °K
Bulbs:
  8 - LED Medium A19 9w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Pewter Bronze
1 6" Stem - Steel - Pewter Bronze
3 12" Stem - Steel - Pewter Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (3113704 3113708)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Etched / White Inside 8   5 3/4 5 3/4 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1  5  5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97512S Frosted     A19 Medium 9 9 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3113704-778 1  785652071393  27 27 16.25 6.855 28.4 0 Yes
Master Pack 3113708EN3-778 0  10785652071390
NJ Pallet   9    48 40 76 84.444 255 No
NV Pallet   9    48 40 76 84.444 255 No
