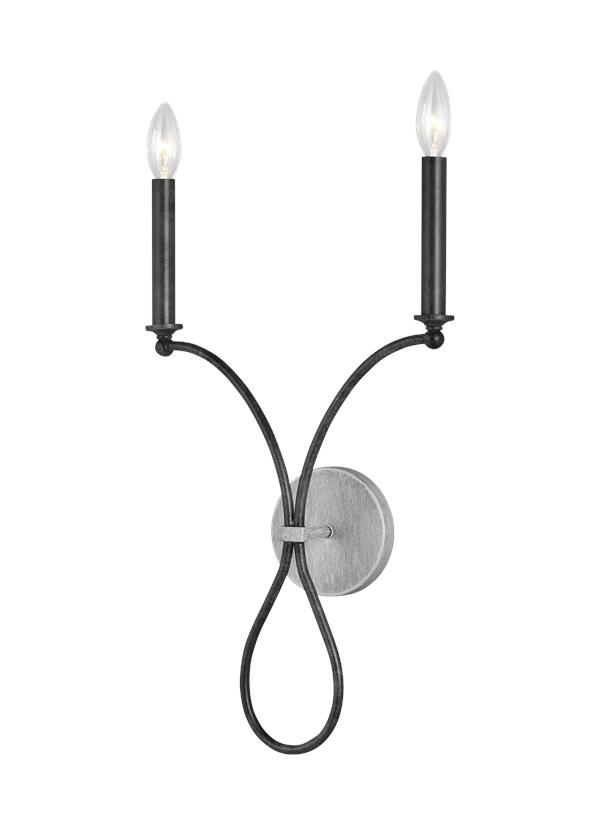

4131502-808: Two Light Wall / Bath Sconce


Collection:  Carra

Featured in the decorative Carra collection

2 B10 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652069543

Finish:   Weathered Zinc (797)
Dimensions:

Width: 12 1/2''
Height: 20 3/4''
Weight: 1.7 lbs.
Extends: 4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  2 - Candelabra B10 Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Canopy - Steel - White Wash
1 Arms - Steel - Weathered Zinc
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4131502-CRA)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     7/8  5  15 7/8  8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6531503-808 1  785652069543  23.58 15 5.5 1.126 2.7 250 Yes
NJ Pallet   65    48 40 76 84.444 175 No
NV Pallet   65    48 40 76 84.444 175 No
