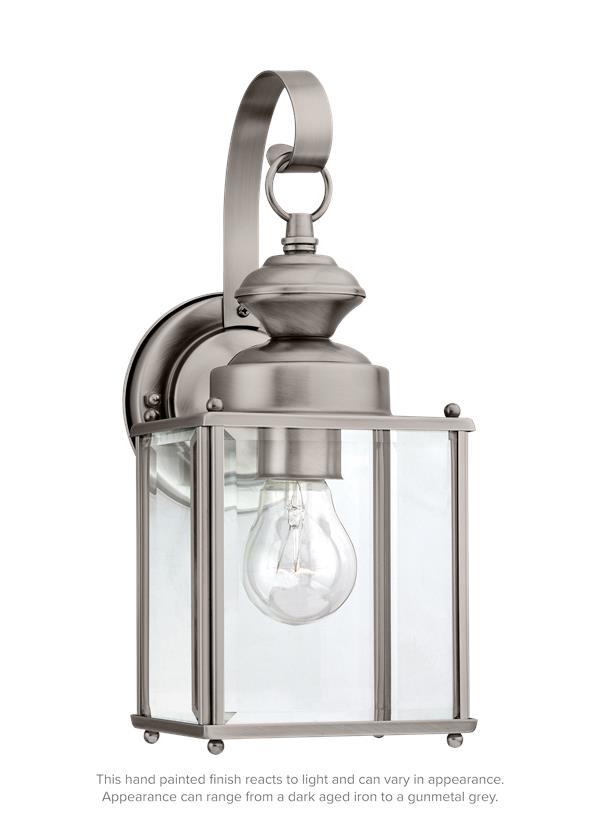

8457EN3-965: One Light Outdoor Wall Lantern

	Collection: Jamestowne
	Large Outdoor Wall Lantern in Antique Brushed Nickel Finish with Clear Beveled Glass.
	UPC #:785652070983
	Finish: Antique Brushed Nickel (965)

Dimensions:


Width:	5 1/4''
Height:	12 1/2''

Weight:

2.7 lbs.

Extends:

5 3/4''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Watts:

Lumens:

800

Bulb Temp:

3000 °K

Bulbs:

1 - LED Medium A19 9w Max. 120v - included

Features:

ENERGY STAR® Qualified
LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Brass - Antique Brushed Nickel

1 Canopy - Brass - Antique Brushed Nickel

1 Bracket - Brass - Antique Brushed Nickel

1 Candle Cup - Brass - Antique Brushed Nickel

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (HC-231)
French (F-010)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear Beveled

3 7/16

5 1/2

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate			2 1/8	4 1/2	6	6 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97512S	Frosted		A19	Medium	9	9	120v	15000	800 230°	3000	90

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8457EN3-965	1	785652070983	7.5	6.5	11.5	0.324	3.05	0	Yes
Master Pack	8457EN3-965	3	10785652070980	20	8.25	12.25	1.17	9.9	0	Yes
NV Pallet		180		48	40	68	75.556	595		No
