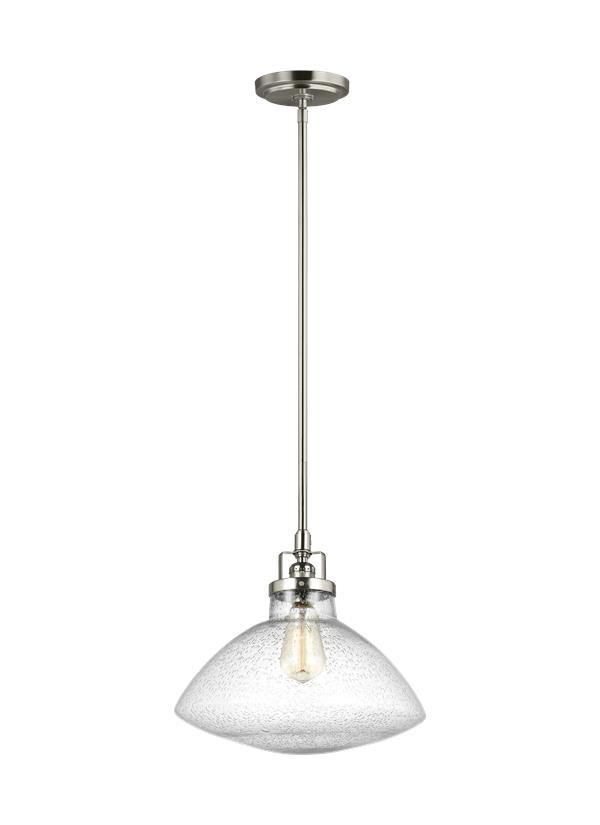

6514501EN7-962: One Light Pendant


Collection:  Belton

Featured in the decorative Belton collection

1 A19 Medium 8.5 watt light bulb

Fixture is supplied with 1 light bulb

Clear seeded glass shade

ENERGY STAR® Qualified

UPC #:785652069116

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 12 5/8''
Height: 11 3/8''
Weight: 5 lbs.
Overall Height: 55 7/8''
Wire: 72'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  1 - LED Medium A19 8w Max. 120v - included
Features:
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
English (990P6_14501-BEL)
Trilingual (English, Spanish, and French) (6514501 6614501_)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear Seeded 1 G560216-67     8 3/8 12 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6514501EN7-962 1  785652069116  16.25 11.25 16 1.693 6.8 0 Yes
Master Pack 6514501EN7-962 0  10785652069113
NJ Pallet   40    48 40 69.5 77.222 272 No
NV Pallet   40    48 40 69.5 77.222 272 No
