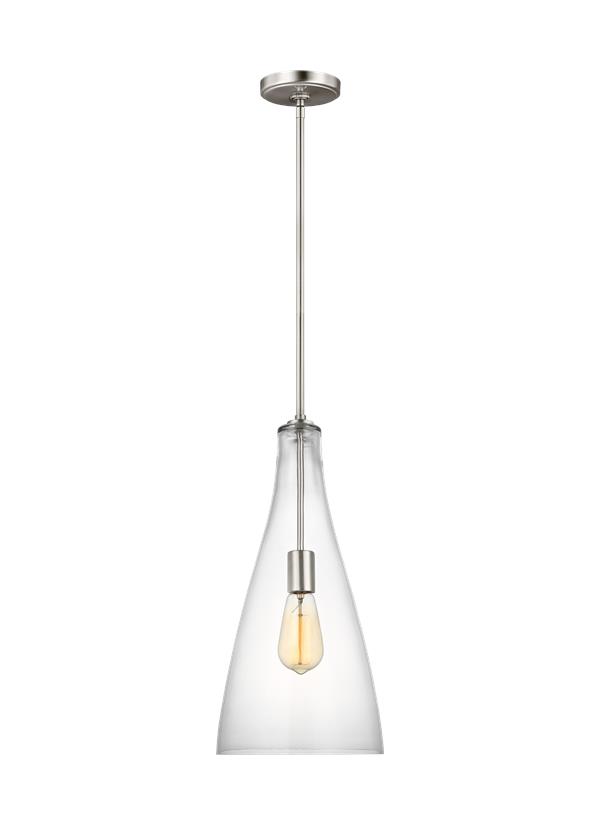

6537001EN7-962: One Light Pendant


Collection:  Arilda

Featured in the decorative Arilda collection

1 A19 Medium 8.5 watt light bulb

Fixture is supplied with 1 light bulb

Clear glass shade

ENERGY STAR® Qualified

UPC #:785652068928

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 9''
Width: 9''
Height: 18 3/4''
Weight: 5.1 lbs.
Overall Height: 65 3/4''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 8
Lumens: 800
Bulb Temp: 2700 °K
Bulbs:
  1 - LED Medium A19 8w Max. 120v - included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6537001-ARI)
Trilingual (English, Spanish, and French) (6537001)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Clear 1       18 9
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8      5
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6537001EN7-962 1  785652068928  22.5 11.75 11.5 1.759 7.8 0 Yes
Master Pack 6537001EN7-962 0  10785652068925
NJ Pallet   36    48 40 75 83.333 284.4 No
NV Pallet   36    48 40 75 83.333 284.4 No
