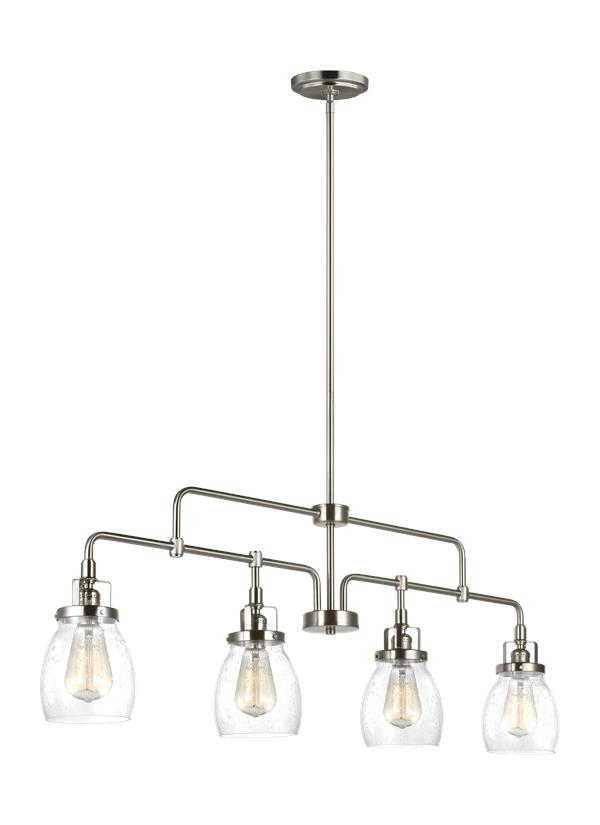

6614504EN7-962: Four Light Island Pendant

	Collection: Belton
	Featured in the decorative Belton collection
	4 A19 Medium 8.5 watt light bulbs
	Fixture is supplied with 1 light bulbs
	Clear seeded glass shades
	ENERGY STAR® Qualified
	UPC #:785652069130
	Finish: Brushed Nickel (962)

Dimensions:


Length:	40 3/4"
Width:	5 3/8''
Height:	14 7/8''

Weight:

10.4 lbs.

Overall Height:

59 3/8''

Wire:

72'' (color/Clear Silver)

Mounting Proc.:

Screw Collar - Stem

Connection:

Mounted To Box

Watts:

Lumens:

800

Bulb Temp:

2700 °K

Bulbs:

4 - LED Medium A19 8w Max. 120v - included

Features:

LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
Meets Title 24 energy efficiency standards
Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.

Material List:

1 Body - Steel - Brushed Nickel

1 6" Stem - Steel - Brushed Nickel

3 12" Stem - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Dry Locations

Instruction Sheets:

English (6614504)
Trilingual (English, Spanish, and French) (6614504)
Trilingual (English, Spanish, and French) (990P6614504-BEL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Clear Seeded

G560215-67

6 1/8

5 3/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	3/4			5

Replacement Bulb Data:

Product #

Type

Base

Watts

Watts Consumed

Volts

Hours

Lumens

Temp (°K)

CRI

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6614504EN7-962	1	785652069130	44.75	12.25	18.75	5.948	16.2	0	Yes
Master Pack	6614504EN7-962	0	10785652069137
NJ Pallet		20		48	40	76	84.444	324		No
NV Pallet		20		48	40	76	84.444	324		No
