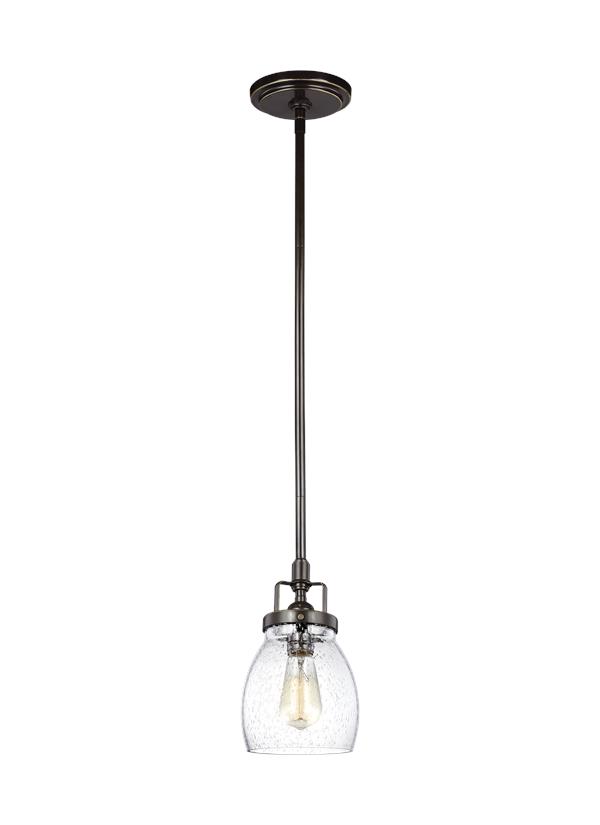

6114501EN7-782: One Light Mini-Pendant



Collection:  Belton


UPC #:785652069086

Finish:   Heirloom Bronze (782)

Dimensions:

Diameter: 5 3/8''
Height: 9''
Weight: 2.55 lbs.
Overall Height: 53 1/2''
Wire: 72'' (color/Brown)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - LED Medium A19 8.5w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Heirloom Bronze
1 6" Stem - Steel - Heirloom Bronze
3 12" Stem - Steel - Heirloom Bronze
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6114501-BEL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear Seeded 1 G560215-67     6 1/8 5 3/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
F8.5A19DLED927 Clear     A19 Medium 8.5 8.5 120v 25000 800    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6114501EN7-782 785652069086  14 8 8.25 0.535 3.4 125 Yes
Master Pack 6114501EN7-782 10785652069083  16.5 9 15.5 1.332 7.7 125 Yes
NJ Pallet   92    48 40 77 85.556 354.2 No
NV Pallet   92    48 40 70 77.778 354 No
