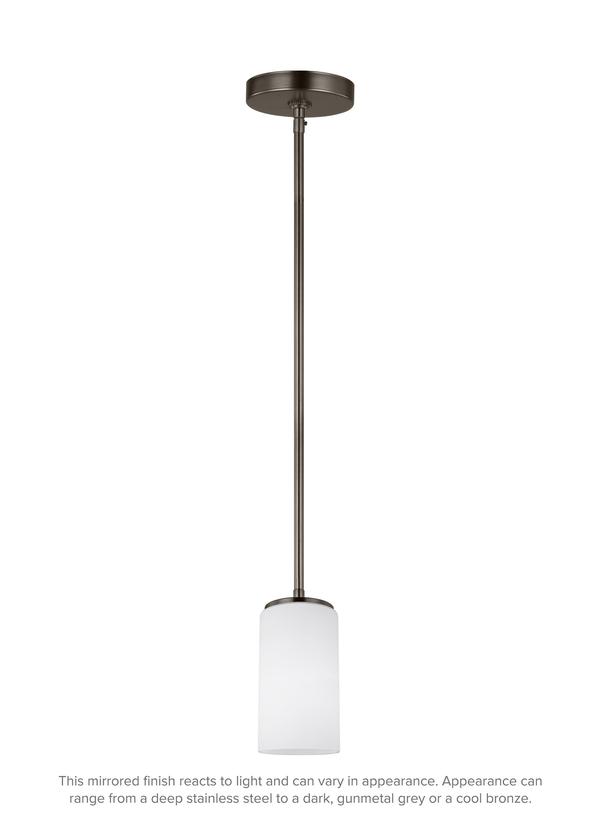

6124601EN3-778: One Light Mini-Pendant



Collection:  Alturas


UPC #:785652068119

Finish:   Brushed Oil Rubbed Bronze (778)

Dimensions:

Diameter: 3 1/2''
Height: 7 3/16''
Weight: 2.2 lbs.
Overall Height: 44 11/16''
Wire: 144'' (color/Brown)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  1 - LED Medium A19 9.5w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Brushed Oil Rubbed Bronze
1 6" Stem - Steel - Brushed Oil Rubbed Bronze
3 12" Stem - Steel - Brushed Oil Rubbed Bronze
1 Sloped Ceiling Hardware - Steel - Brushed Oil Rubbed Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6124601-ALT)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1 G560196-303     6 1/8 3 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5 1/8
Replacement Bulb Data:
Info: 97502S
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97502S Frosted     A19 Medium 9.3 9.3 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6124601EN3-778 785652068119  17.25 7.25 7 0.507 3.1 125 Yes
NJ Pallet   140    48 40 72 80 42 No
NV Pallet   140    48 40 72 80 42 No
