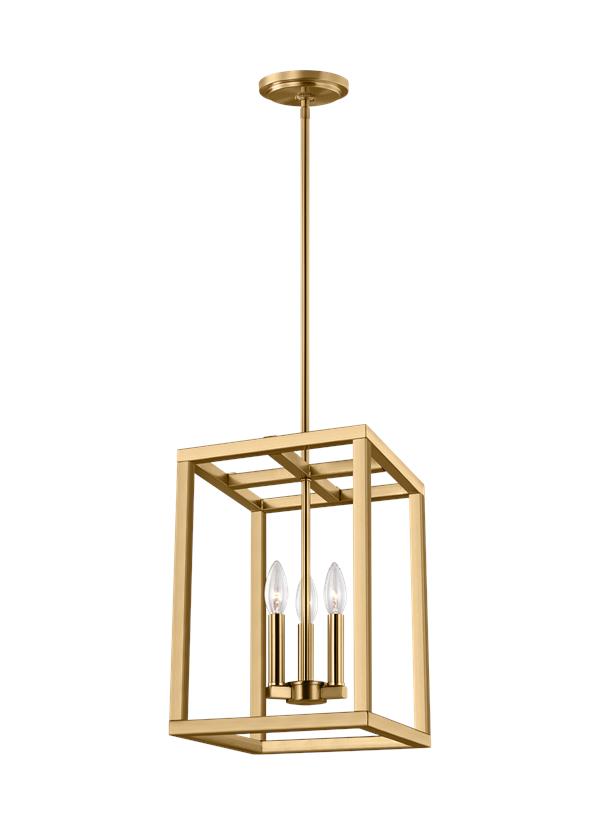

5134503EN-848: Three Light Hall / Foyer



Collection:  Moffet Street


UPC #:785652068430

Finish:   Satin Bronze (848)

Dimensions:

Length: 10 1/2"
Width: 10 1/2''
Height: 15''
Weight: 8.2 lbs.
Overall Height: 61''
Wire: 120'' (color/Clear Gold)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  3 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • Clear bulb(s) recommended for this fixture
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Satin Bronze
1 6" Stem - Steel - Satin Bronze
3 12" Stem - Steel - Satin Bronze
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Replacement Bulb Data:
Info: LTB10C35027CB
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350   2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134503EN-848 785652068430  19 13.5 13.5 2.004 9.8 175 Yes
NJ Pallet   30    48 40 72.5 80.556 294 No
NV Pallet   30    48 40 72.5 80.556 294 No
