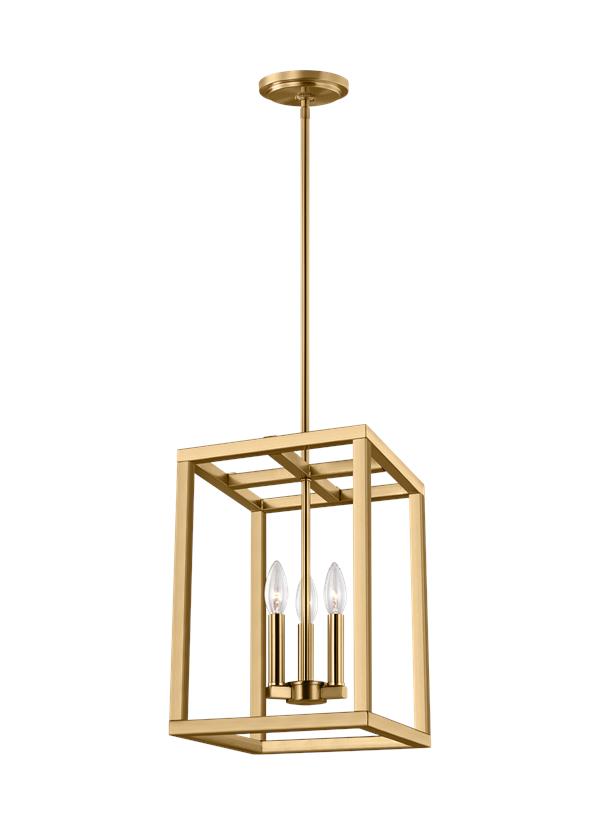

5134503-848: Small Three Light Hall / Foyer


Collection:  Moffet Street

Featured in the decorative Moffet Street collection

3 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652067655

Finish:   Satin Brass (848)
Dimensions:

Length: 10 1/2"
Width: 10 1/2''
Height: 15''
Weight: 8.2 lbs.
Overall Height: 61''
Wire: 120'' (color/Clear Gold)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  3 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Satin Brass
1 6" Stem - Steel - Satin Brass
3 12" Stem - Steel - Satin Brass
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)
Trilingual (English, Spanish, and French) (5134503 5134504 5134508 5234508)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134503-848 1  785652067655  19 13.5 13.5 2.004 9.8 0 Yes
Master Pack 5134503-848 0  10785652067652
NJ Pallet   30    48 40 72.5 80.556 294 No
NV Pallet   30    48 40 72.5 80.556 294 No
