66062-962: Three Light Semi-Flush Convertible Pendant


Collection:  Sussex

The look that satisfies discerning taste. Part of our Sussex collection where past elements of design keep pace with today.

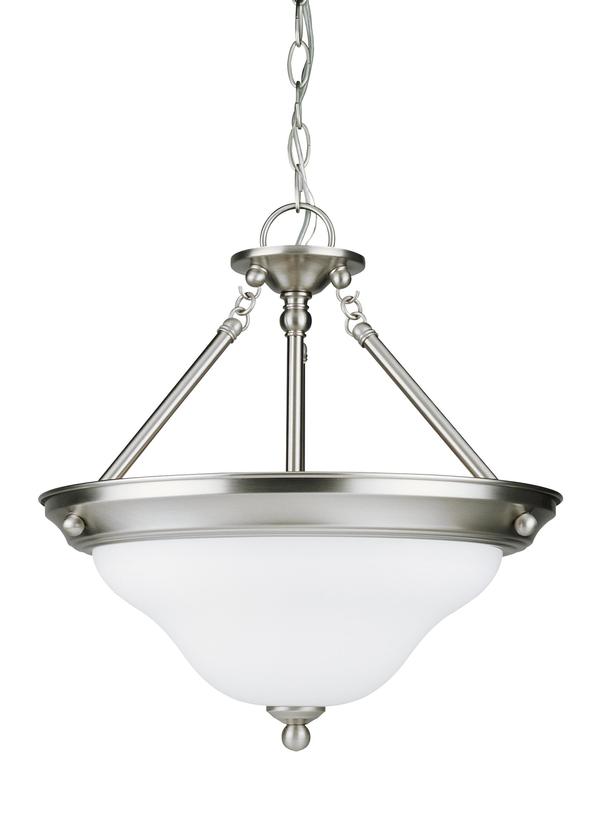

Sussex Three Light Convertible in Brushed Nickel Finish with Satin White Glass.

Design #: D20072

Featured in the decorative Sussex collection

3 A19 Medium 100 watt light bulbs

Satin white glass shade

Fixture is dual mount and may be installed semi-flush or as a pendant.

A decorative canopy is included

UPC #:785652660634

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 15 1/4''
Height: 16 3/4''
Weight: 7.2 lbs.
Height Flush: 15''
Overall Height: 141''
Wire: 144'' (color/Clear)
Chain: 120''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • A decorative canopy is included
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
English (HC-597)
French (F-005)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin White 1       4 1/2 12 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3      6 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 66062-962 1  785652660634  17 17 7.25 1.213 9.05 125 Yes
NJ Pallet   48    48 40 72 80 362 No
NV Pallet   40    48 40 73 81.111 340 No
