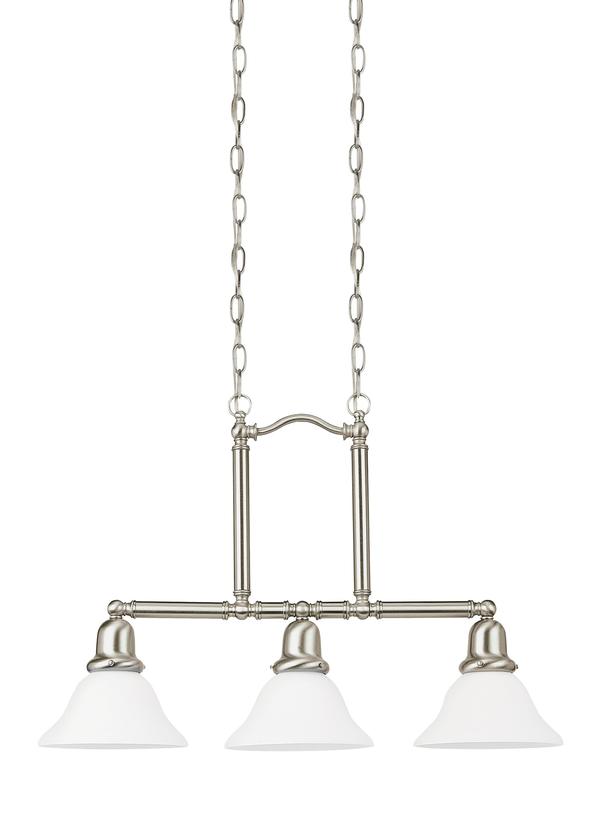

66061-962: Three Light Island Pendant



Collection:  Sussex


Three Light Decorative Pendant Island Finished in Brushed Nickel with Satin White Glass Shades.

The Sussex Collection of lighting fixtures features classic elements of design while keeping pace with today's popular brushed nickel finish with satin white glass.

UPC #:785652660610

Finish:   Brushed Nickel (962)

Dimensions:

Length: 26"
Width: 7 1/2''
Height: 18 1/4''
Overall Height: 140 1/4''
Wire: 144'' (color/Clear)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
3 - LED Medium A19 8w Max. 120v - Not included
3 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • A decorative canopy is included
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
2 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-266FS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin White 3       4 1/8 7 1/2 1 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     6 5/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 66061-962 785652660610  23.5 17 7.5 1.734 13.9 100 Yes
NJ Pallet   40    48 40 73 81.111 556 No
NV Pallet   45    48 40 73 81.111 536 No
