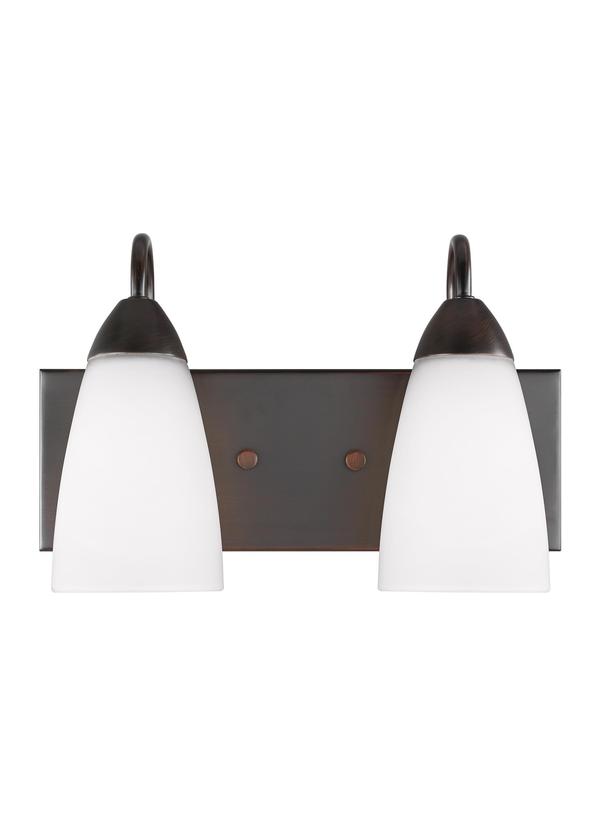

4420202EN3-710: Two Light Wall / Bath



Collection:  Seville


UPC #:785652058264

Finish:   Burnt Sienna (710)

Dimensions:

Width: 13 1/2''
Height: 8 1/2''
Weight: 3.59 lbs.
Extends: 6 5/8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - LED Medium A19 9.5w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Burnt Sienna
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4_2020_-SVE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 2 G560283-303     5 3/4 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4  13 1/2  5/8    5 1/8  3 3/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97502S Frosted     A19 Medium 9.5 9.5 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 4420202EN3-710 785652058264  15.5 8 10 0.718 4.8 125 Yes
Master Pack   10785652058261  20 16.25 17 3.197 21.1 125 Yes
NJ Pallet   72    48 40 65 72.222 379.6 No
NV Pallet   72    48 40 65 72.222 379.6 No
