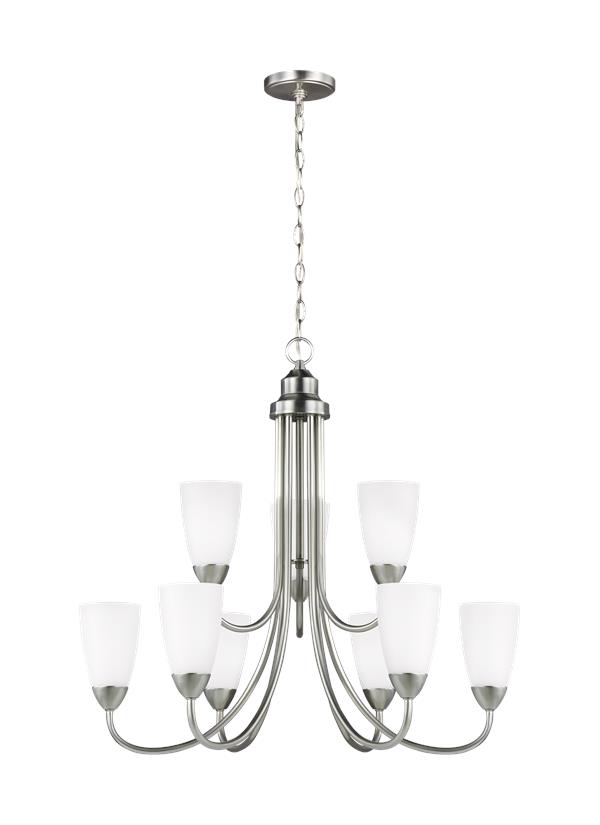

3120209EN3-962: Nine Light Chandelier



Collection:  Seville


UPC #:785652058196

Finish:   Brushed Nickel (962)

Dimensions:

Diameter: 28 7/8''
Height: 27 1/8''
Weight: 16.3 lbs.
Overall Height: 101''
Wire: 120'' (color/Clear Silver)
Chain: 72''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  9 - LED Medium A19 9.5w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH312020_-SVE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 9 G560283-303     5 3/4 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 7/8
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97502S Frosted     A19 Medium 9.5 9.5 120v 15000 800    230° 3000 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3120209EN3-962 785652058196  29.75 12.25 28.5 6.011 24.2 100 Yes
NJ Pallet     48 40 72.5 80.556 217.8 No
NV Pallet     48 40 72.5 80.556 217.8 No
