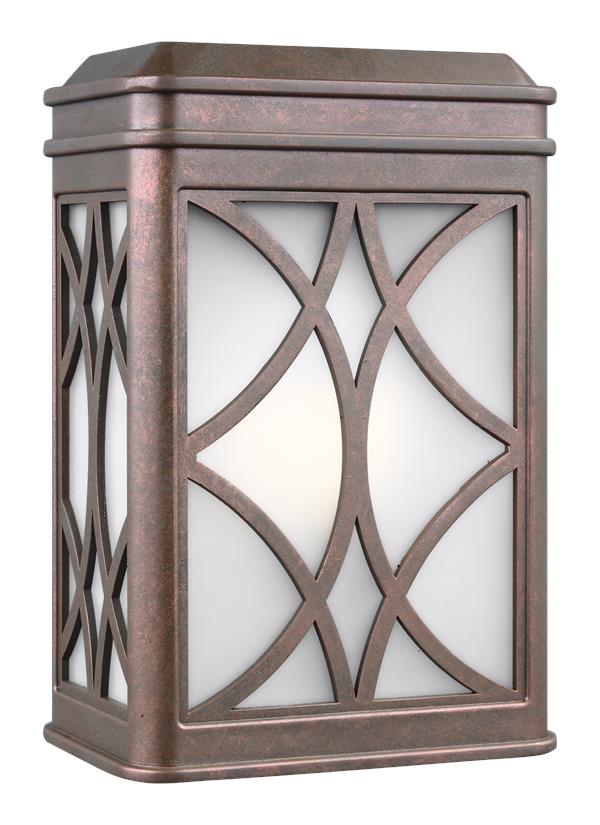

8519601-44: Small One Light Outdoor Wall Lantern


Collection:  Melito

UPC #:785652056505

Finish:   Weathered Copper (44)
Dimensions:

Width: 6''
Height: 9''
Weight: 3.1 lbs.
Extends: 5''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Screw(s)
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - StoneStrong - Weathered Copper
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W8_19601-MEL)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Satin Etched 1 G560302-619   4 3/4 8 1/4
Panel Glass Satin Etched 2 G560303-619   2 5/8 8 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 5/8  7/8    3 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8519601-44 1  785652056505  12.25 10.25 9.25 0.672 4 125 Yes
NJ Pallet   120    48 40 68 75.556 480 No
NV Pallet   120    48 40 68 75.556 480 No
