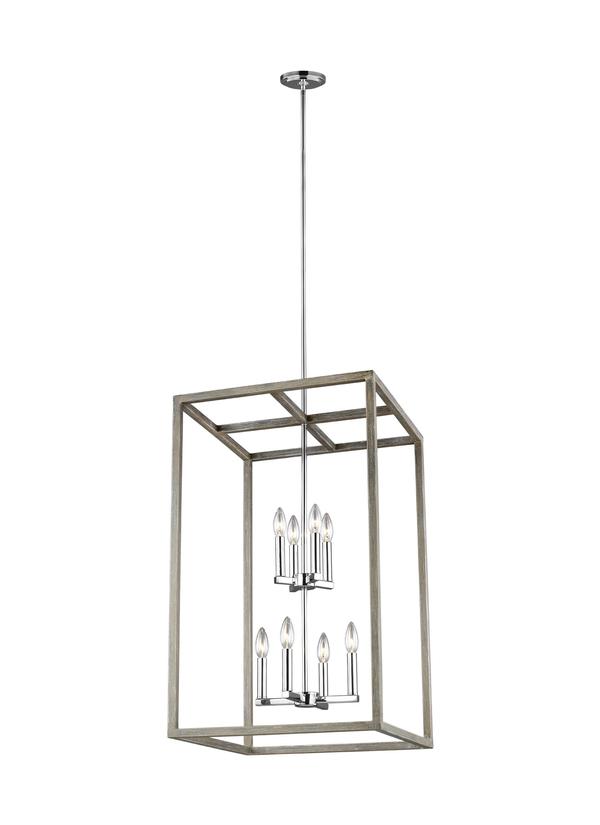

5134508EN-872: Large Eight Light Hall / Foyer



Collection:  Moffet Street


Featured in the decorative Moffet Street collection

The Sea Gull Collection Moffet Street eight light indoor pendant in washed pineoffers a distinctive take on a rustic theme. Built in broad steel frames with hand-applied finish that mimics natural wood. This combination of rustic and urban fits comfortably in a wide variety of environments. The sharp, squared lines of the frame complement a wide variety of settings. The collection includes eight-light foyer, four-light foyer, one- light wall sconce, and a six-light island fixture. The Moffet Street Collection is available in three beautiful finishes Washed Pine, Brushed Nickel and Satin Brass All fixtures are California Title 24 compliant and damp rated for use in sheltered, damp environments.

8 Torpedo Candelabra 3.5 watt light bulbs

Fixture is supplied with 1 light bulb

Clear bulb(s) recommended for this fixture

Damp Rated

UPC #:785652060557

Finish:   Washed Pine (872)

Dimensions:

Length: 19"
Width: 19''
Height: 31 1/8''
Weight: 15.9 lbs.
Overall Height: 77''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Watts: 3.5
Lumens: 350
Bulb Temp: 2700 °K
Bulbs:
  8 - LED Candelabra Torpedo 3.5w Max. 120v - included
Features:
  • Clear bulb(s) recommended for this fixture
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Washed Pine
1 6" Stem - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)
Trilingual (English, Spanish, and French) (5134503 5134504 5134508 5234508)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350    360° 2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134508EN-872 785652060557  22.5 22 36 10.313 22.2 0 Yes
Master Pack 5134508EN-872 10785652060554
NJ Pallet     48 40 65 72.222 117 No
NV Pallet     48 40 65 72.222 117 No
