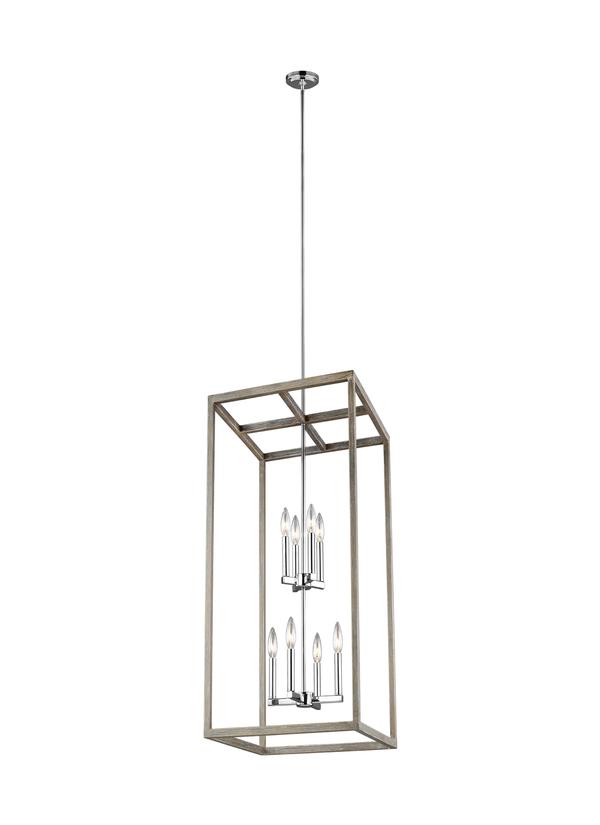

5134508-872: Eight Light Hall / Foyer



Collection:  Moffet Street


UPC #:785652060007

Finish:   Washed Pine (872)

Dimensions:

Length: 19"
Width: 19''
Height: 31 1/8''
Weight: 15.9 lbs.
Overall Height: 77''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  8 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Washed Pine
1 6" Stem - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134508-872 785652060007  34.75 22.75 22.25 10.179 19.5 300 Yes
NJ Pallet     48 40 65 72.222 117 No
NV Pallet     48 40 65 72.222 117 No
