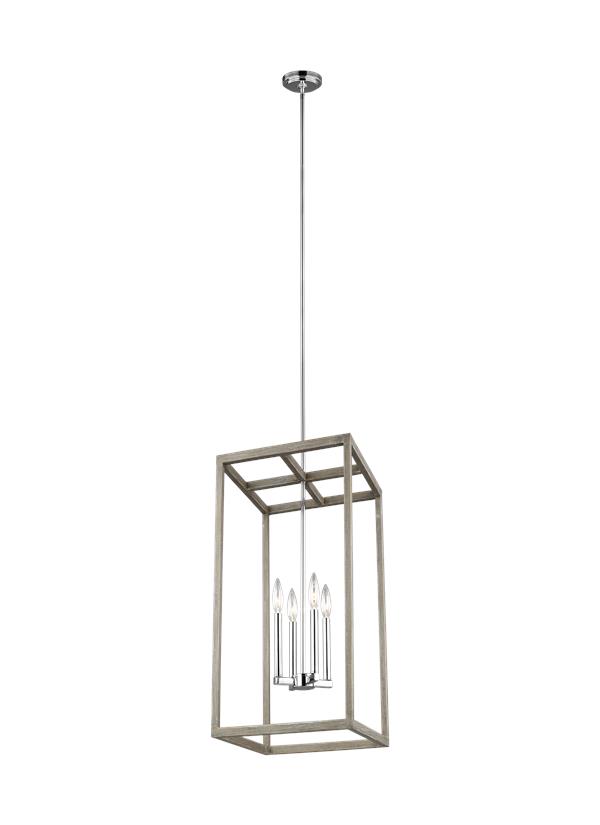

5134504-872: Medium Four Light Hall / Foyer


Collection:  Moffet Street

Featured in the decorative Moffet Street collection

4 Torpedo Candelabra 60 watt light bulbs

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

Sloped ceiling mounting hardware included

UPC #:785652059995

Finish:   Washed Pine (872)
Dimensions:

Length: 15 1/2"
Width: 15 1/2''
Height: 23 1/8''
Weight: 12 lbs.
Overall Height: 69''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Screw Collar - Stem
Connection: Mounted To Box
Bulbs:
  4 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Undefined
1 6" Stem - Steel - Undefined
3 12" Stem - Steel - Undefined
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)
Trilingual (English, Spanish, and French) (5134503 5134504 5134508 5234508)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134504-872 1  785652059995  28 18.75 18.25 5.545 13.9 0 Yes
Master Pack 5134504-872 0  10785652059992
NJ Pallet   12    48 40 77 85.556 166.8 No
NV Pallet   12    48 40 77 85.556 166.8 No
