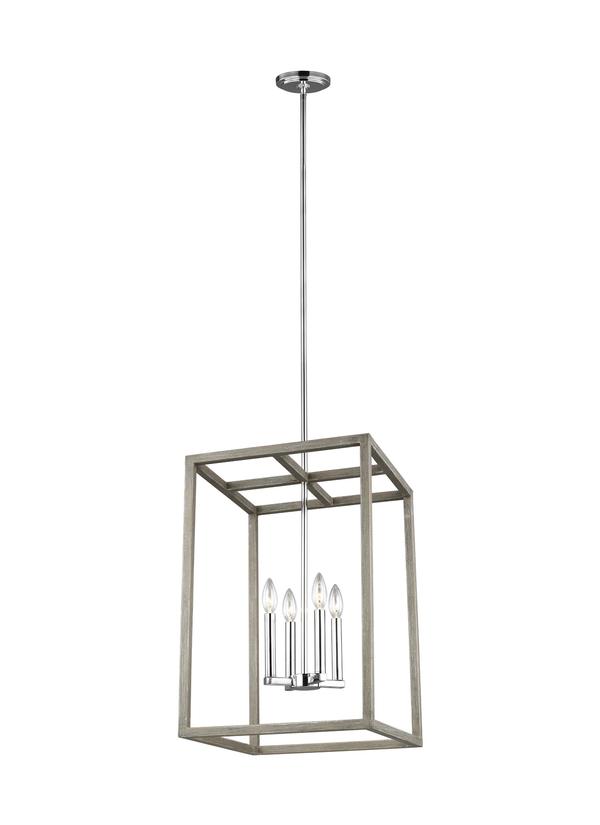

5134504EN-872: Medium Four Light Hall / Foyer



Collection:  Moffet Street


UPC #:785652060540

Finish:   Washed Pine (872)

Dimensions:

Length: 15 1/2"
Width: 15 1/2''
Height: 23 1/8''
Weight: 12 lbs.
Overall Height: 69''
Wire: 120'' (color/Clear Silver)
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  4 - LED Candelabra Torpedo 3.4w Max. 120v - included
Features:
  • Clear bulb(s) recommended for this fixture
  • ENERGY STAR® Qualified
  • LED Bulbs are an efficient, versatile and durable light source that deliver exceptional performance.
  • Sloped ceiling mounting hardware included
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant when used with included Joint Appendix (JA8) approved lamp.
Material List:
1 Body - Steel - Washed Pine
1 6" Stem - Steel - Chrome
3 12" Stem - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P513450_-MOF)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
LTB10C35027CB Clear   Glass Lens   Torpedo E12 Candelabra 3.5 3.5 120v 25000 350   2700 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 5134504EN-872 785652060540  28 18.75 18.25 5.545 13.9 250 Yes
NJ Pallet   12    48 40 77 85.556 166.8 No
NV Pallet   12    48 40 77 85.556 166.8 No
