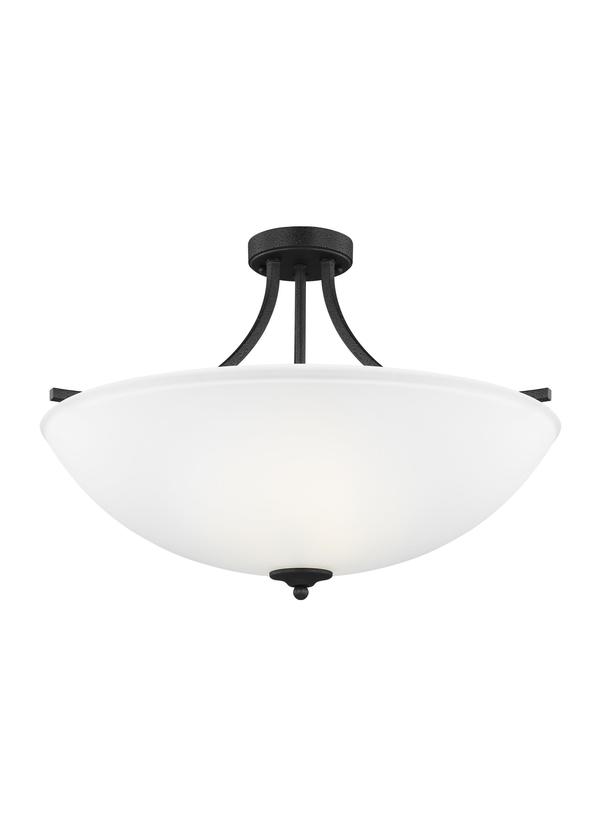

7716504-839: Large Four Light Semi-Flush Convertible Pendant



Collection:  Geary


UPC #:785652001574

Finish:   Blacksmith (839)

Dimensions:

Diameter: 25''
Height: 18 1/2''
Weight: 13 lbs.
Height Flush: 17''
Overall Height: 56 1/2''
Wire: 72'' (color/Black)
Chain: 36''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 100w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Blacksmith
1 Chain - Steel - Blacksmith
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C771650_-GRY)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 1 G560320-619     6 3/4 24
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 3/4      4 7/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 7716504-839 785652001574  27.75 27.5 14.25 6.293 21.2 250 Yes
NJ Pallet     48 40 74.5 82.778 190.8 No
NV Pallet     48 40 74.5 82.778 190.8 No
