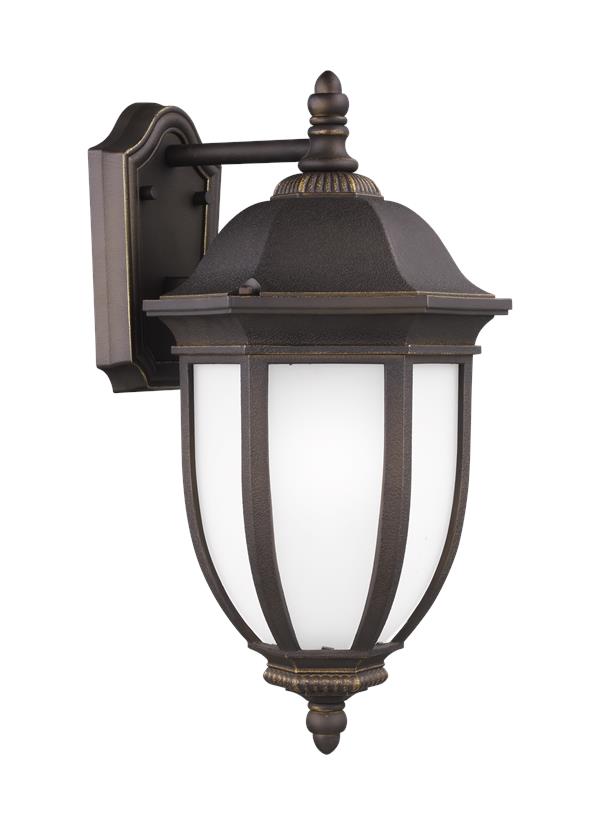

8729301-71: Large One Light Outdoor Wall Lantern

	Collection: Galvyn
	UPC #:785652056642
	Finish: Antique Bronze (71)

Dimensions:


Width:	9 7/8''
Height:	18 3/4''

Weight:

4.4 lbs.

Extends:

10 3/8''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Medium A19 75w Max. 120v - Not included

Features:

Made from a unique composite material which is engineered to withstand the harshest environmental conditions and backed by a 5-year warranty.
Easily converts to LED with optional replacement lamps
Meets Title 24 energy efficiency standards
Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.

Material List:

1 Body - StoneStrong - Antique Bronze

Safety Listing:

Safety Listed for Wet Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990W8_29301-GAL)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Satin Etched

G560310-619

3 5/8

8 3/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate	8 1/8	5 1/4	1 1/8		3 3/8

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8729301-71	1	785652056642	24	13	13.25	2.392	7	250	Yes
NJ Pallet		30		48	40	69	76.667	210		No
NV Pallet		30		48	40	69	76.667	210		No
